Wayfarer Specifications
Close Specs

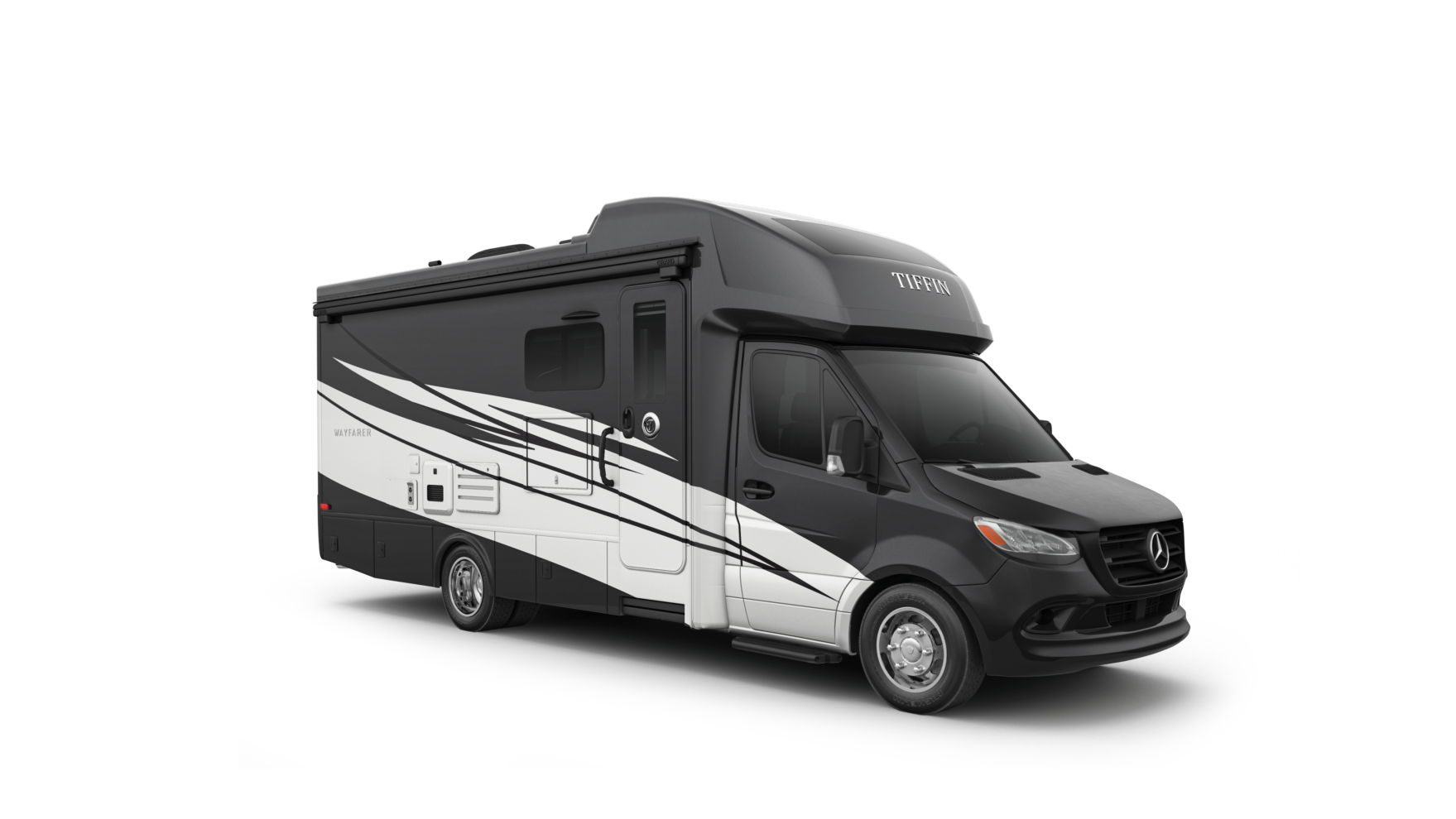

Wayfarer
Select multiple floor plans to compare.
| 25 JW | 25 LW | 25 RLW | 25 RW | Wayfarer footnotes | |
| Weights and Measures | |||||
| Dimensions | |||||
| Overall Length (approx.) 1 | 25' 8" | 25' 8" | 25' 8" | 25' 8" | The approximated coach width and length does not include side-view mirrors. |
| Wheel Base | 170.3" | 170.3" | 170.3" | 170.3" | |
| Overall Width 2 | 90" | 90" | 90" | 90" | The approximated coach width and length does not include side-view mirrors. |
| Overall Height | 11' 4" | 11' 4" | 11' 4" | 11' 4" | |
| Interior Height | 80" | 80" | 80" | 80" | |
| Interior Width | 87" | 87" | 87" | 87" | |
| Basement Storage (cubic feet, approx.) | 54 | 130 | 45 | 54 | |
| Square Footage (approx.) | 146 | 146 | 127 | 164 | |
| Weight Limits | |||||
| GAWR-Front (pounds) | 4410 | 4410 | 4410 | 4410 | |
| GAWR-Rear (pounds) | 7720 | 7720 | 7720 | 7720 | |
| GVWR (pounds) | 11030 | 11030 | 11030 | 11030 | |
| Hitch Rating (pounds) 3 | 5000 | 5000 | 5000 | 5000 | Tow ratings and ability are subject to gross combined weight ratings on the tow vehicle. Hitch rated at 500-pound vertical tongue weight and includes 7-pin connector. |
| GCWR (pounds) | 15250 | 15250 | 15250 | 15250 | |
| Capacities | |||||
| Fuel Tank (gallons) | 24.5 | 24.5 | 24.5 | 24.5 | |
| DEF Tank (gallons) 4 | 4.8 | 4.8 | 4.8 | 4.8 | Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards. |
| Fresh Water (gallons) | 30 | 32 | 32 | 30 | |
| Grey Water (gallons) | 33 | 32 | 32 | 33 | |
| Black Water (gallons) | 28 | 28 | 28 | 28 | |
| LPG Tank (gallons) | 12 | 12 | 12 | 12 | |
| Quantities | |||||
| Number of Slideouts | 1 | 1 | 0 | 1 | |
| Sleeping Capacity 5 | 3 | 2 to 4 | 3 | 2 to 4 | Dependent on furniture and dinette options. |
| Sleeping Areas 6 | 2 | 2 to 4 | 2 | 1 to 3 | Dependent on furniture and dinette options. |
| Seat Belts 7 | 4 | 4 | 4 | 4 | Dependent on furniture and dinette options. |
| Seating Capacity 8 | 4 | 4 | 4 | 4 | Dependent on furniture and dinette options. |
| Chassis and Drivetrain | |||||
| Chassis and Drivetrain Features | |||||
| Mercedes-Benz® 3500XD Dual Wheel Cutaway Chassis | STD | STD | STD | STD | |
| Mercedes-Benz® 3.0-Liter V6 Turbo 188 HP Diesel Engine with 325 lb-ft Torque | STD | STD | STD | STD | |
| Two-wheel Drive | STD | STD | STD | STD | |
| 220-Amp Alternator | STD | STD | STD | STD | |
| Mercedes-Benz® 7G-Tronic Automatic Transmission | STD | STD | STD | STD | |
| Aluminum Wheels | STD | STD | STD | STD | |
| Front and Rear LT 215/85R 16 Tires | STD | STD | STD | STD | |
| (1) 12-Volt Flooded Lead-Acid Chassis Batteries | STD | STD | STD | STD | |
| Lippert Hydraulic Leveling System with Control Panel | STD | STD | STD | STD | |
| SumoSprings® Ride Assist System | STD | STD | STD | STD | |
| Front Radiator | STD | STD | STD | STD | |
| Four Wheel ABS Brakes | STD | STD | STD | STD | |
| Manual Parking Brake | STD | STD | STD | STD | |
| Active Brake Assist (Collision Mitigation) | STD | STD | STD | STD | |
| Active Distance Assist Distronic® (Adaptive Cruise Control) | STD | STD | STD | STD | |
| Attention Assist | STD | STD | STD | STD | |
| Traffic Sign Assist | STD | STD | STD | STD | |
| Load Adaptive Electronic Stability Program (ESP) | STD | STD | STD | STD | |
| High Beam Assist | STD | STD | STD | STD | |
| Active Lane Keeping Assist | STD | STD | STD | STD | |
| Chassis and Drivetrain Options | |||||
| Secondary 120-Amp Alternator 9 | - | - | - | DEP | Only available with Volta Power Systems FLEX 6.7-kWh Energy Storage Pack option. |
| Construction | |||||
| Construction Features | |||||
| Seamless One-piece Gel-coat Fiberglass Molded Roof Cap | STD | STD | STD | STD | |
| One-piece Molded Gel-coat Fiberglass Front and Rear Caps | STD | STD | STD | STD | |
| Electrical | |||||
| Electrical Features | |||||
| Spyder Controls Multiplex System | STD | STD | STD | STD | |
| Firefly Integrations Mira Module 10 | STD | STD | STD | STD | Download the accompanying Vegatouch app to control your coach locally within Bluetooth range. |
| Interior Entryway Spyder System Main Monitor | STD | STD | STD | STD | |
| Additional Spyder System Switch Panel | STD | STD | STD | STD | |
| (1) 15,000-BTU Air Conditioner | STD | STD | STD | STD | |
| Wall-mounted Thermostat with Built-in Temperature Sensor | STD | STD | STD | STD | |
| SmartPlug® Detachable 30-Amp Shore Power Cord | STD | STD | STD | STD | |
| Prep for Solar Panel 11 | STD | STD | STD | STD | Includes a docking port for an aftermarket solar panel. |
| HD Over-the-air Antenna | STD | STD | STD | STD | |
| Park Cable and Ground Satellite Hook-up | STD | STD | STD | STD | |
| Prep for In-motion Satellite | STD | STD | STD | STD | |
| HDMI Ports | STD | STD | STD | STD | |
| Mercedes-Benz® Wireless Internet Access | STD | STD | STD | STD | |
| 12-Volt Breaker Panel | STD | STD | STD | STD | |
| 12-Volt Disconnect Switch | STD | STD | STD | STD | |
| Inverted Outlets for CPAP Machine in Bedroom | STD | STD | STD | STD | |
| Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay | STD | STD | STD | STD | |
| 110-Volt Exterior Receptacle | STD | STD | STD | STD | |
| Surge Guard® Transfer Switch | STD | STD | STD | STD | |
| USB Receptacles Throughout Coach | STD | STD | STD | STD | |
| Heating and Cooktop Power Source | |||||
| Liquid Propane (LP) Coach 12 | STD | STD | STD | STD | Propane is used to power the ducted furnaces, the water heater, and the liquid propane cooktop. |
| Hydronic Heating & Electronic Appliance Equipped Coach 13 | OPT | OPT | OPT | OPT | Replaces the ducted furnaces, the Truma AquaGo™ water heater, the liquid propane cooktop, and the gas-electric refrigerator with an Elwell Timberline hydronic heating system, an induction cooktop, and a 12-volt refrigerator. Removes LPG tank. Formerly known as "All-Electric Coach". |
| Generators and Power Systems | |||||
| 3.2-Kilowatt Onan® Quiet Diesel Generator 14 | STD | STD | STD | STD | Not available with Volta Power Systems FLEX 6.7-kWh Energy Storage Pack option. |
| Volta Power Systems FLEX 6.7-kWh Energy Storage Pack 15 | - | - | - | OPT | Upgrades inverter wattage to 3,200-watts and adds a second, dedicated alternator. Includes centralized Volta System monitor and energy management system. Removes 3.2-kilowatt diesel generator. |
| Inverter | |||||
| 2,000-Watt Pure Sine Wave Inverter 16 | STD | STD | STD | DEP | Only available with 3.2-kilowatt diesel generator. |
| 3,200-Watt Pure Sine Wave Inverter/Charger 17 | - | - | - | DEP | Only available with Volta Power Systems FLEX 6.7-kWh Energy Storage Pack option. |
| House Batteries | |||||
| (2) 12-Volt Flooded Lead-Acid House Batteries 18 | STD | STD | STD | STD | House batteries are stored under the entry steps. |
| (2) 12-Volt Lithium House Battery 19 | OPT | OPT | OPT | OPT | House batteries are stored under the entry steps. |
| Space Heating | |||||
| (1) 30,000-BTU Ducted Furnace 20 | DEP | DEP | DEP | DEP | Only available with LP coach option. |
| Elwell Timberline Hydronic Heating System 21 | DEP | DEP | DEP | DEP | Replaces ducted furnaces when hydronic heating & electronic appliance equipped coach option is selected. Elwell Timberline Hydronic Heating System provides both heated air and water. |
| Electrical Add On Options | |||||
| (1) 200-Watt Solar Panel with (1) 30-Amp Controller | OPT | OPT | OPT | OPT | |
| Energy Management System 22 | - | - | - | DEP | Only available with Power Without Compromise® Volta Power System option. |
| In-motion Satellite Dish | OPT | OPT | OPT | OPT | |
| Wi-Fi Booster | OPT | OPT | OPT | OPT | |
| Plumbing | |||||
| Plumbing Features | |||||
| Water Heater Bypass System | STD | STD | STD | STD | |
| Aqua View Showermiser™ | STD | STD | STD | STD | |
| Water Filter | STD | STD | STD | STD | |
| Water Pump | STD | STD | STD | STD | |
| Low-point Water Drain Lines | STD | STD | STD | STD | |
| Black Holding Tank Flush System | STD | STD | STD | STD | |
| Gravity Water Fill | STD | STD | STD | STD | |
| Heated Fresh and Holding Tanks via Tank Pads and Heat Duct | STD | STD | STD | STD | |
| Tank Level Monitor System | STD | STD | STD | STD | |
| Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports | STD | STD | STD | STD | |
| Exterior Rinse Hose with Shower Head | STD | STD | STD | STD | |
| Fresh Water Hookup for City Water and Tank Fill | STD | STD | STD | STD | |
| Sewer Hose Storage | STD | STD | STD | STD | |
| Water Heater Options | |||||
| Truma AquaGo™ Comfort Plus Instant Water Heater 23 | DEP | DEP | DEP | DEP | Only available with LP coach option. |
| Elwell Timberline Hydronic Heating System 24 | DEP | DEP | DEP | DEP | Replaces Truma AquaGo™ Comfort Plus instant water heater when hydronic heating & electronic appliance equipped coach option is selected. Elwell Timberline hydronic heating system provides both heated air and water. |
| Exterior | |||||
| Exterior Features | |||||
| Full-body Paint with (2) Layers of Clear Coat | STD | STD | STD | STD | |
| High Performance Protective Film on Front Cap, Front Cab, and Other Select Areas | STD | STD | STD | STD | |
| (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting and Built-in Speakers | STD | STD | STD | STD | |
| Lockable Handles on Compartment Doors | STD | STD | STD | STD | |
| Motion-sensor Lights in Cargo Bay | STD | STD | STD | STD | |
| Flush-Style Tinted Windows with Tip-out Feature | STD | STD | STD | STD | |
| Exterior Patio Light | STD | STD | STD | STD | |
| Fog Lights | STD | STD | STD | STD | |
| Driver and Passenger Side Front Cap Exterior Entry Light | STD | STD | STD | STD | |
| Heated, Electrically Adjustable Side-view Mirrors | STD | STD | STD | STD | |
| Lightweight Entry Door | STD | STD | STD | STD | |
| Entry Door Grab Handle | STD | STD | STD | STD | |
| Mud Flaps | STD | STD | STD | STD | |
| Exterior Paint Color Options | |||||
| Silver Sand | OPT | OPT | OPT | OPT | |
| Sand Drift | OPT | OPT | OPT | OPT | |
| Sea Mist | OPT | OPT | OPT | OPT | |
| Obsidian | OPT | OPT | OPT | OPT | |
| Exterior Add On Options | |||||
| Exterior TV | OPT | OPT | - | OPT | |
| Interior | |||||
| Interior Features | |||||
| Handcrafted Overhead Cabinetry | STD | STD | STD | STD | |
| Mild Steel Step Well with Composite Steps | STD | STD | STD | STD | |
| Solid Surface Galley Countertop | STD | STD | STD | STD | |
| Handcrafted Slide-out Fascia | STD | STD | STD | STD | |
| Soft Touch Vinyl Ceiling | STD | STD | STD | STD | |
| Dimmable LED Lighting | STD | STD | STD | STD | |
| Accent Lighting in Lounge, Galley, and Bedroom | STD | STD | STD | STD | |
| Carbon Monoxide Detector | STD | STD | STD | STD | |
| LPG Leak Detector | STD | STD | STD | STD | |
| Smoke Detector | STD | STD | STD | STD | |
| Fire Extinguisher | STD | STD | STD | STD | |
| Solar and Privacy Shades | STD | STD | STD | STD | |
| Soft-closing Drawers | STD | STD | STD | STD | |
| Powered Roof Vents | STD | STD | STD | STD | |
| Interior Grab Handle at Entry Door | STD | STD | STD | STD | |
| Stereo System with Separate Speaker Zones | STD | STD | STD | STD | |
| (2) Captain’s Chair Lounge Cushions | STD | STD | STD | STD | |
| Interior Décor Packages | |||||
| Mink | OPT | OPT | OPT | OPT | |
| Champagne | OPT | OPT | OPT | OPT | |
| Upholstery Fabrics | |||||
| Richloom Seaport Bamboo Vinyl Upholstery 25 | DEP | DEP | DEP | DEP | Always paired with Mink interior décor package. |
| Richloom Etna Linen Vinyl Upholstery 26 | DEP | DEP | DEP | DEP | Always paired with Champagne interior décor package. |
| Cabinetry Color | |||||
| White Linen | OPT | OPT | OPT | OPT | |
| Sandstone | OPT | OPT | OPT | OPT | |
| Shadow | OPT | OPT | OPT | OPT | |
| Floor Tiles | |||||
| Artisan Misty Luxury Vinyl Tile 27 | DEP | DEP | DEP | DEP | Always paired with Mink interior décor package. |
| Hickory Way Luxury Vinyl Tile 28 | DEP | DEP | DEP | DEP | Always paired with Champagne interior décor package. |
| Television | |||||
| TV on Motorized Lift | STD | - | - | - | |
| Living Area Mounted TV 29 | - | DEP | STD | DEP | On 25 RW and 25 LW, TV is over galley unless Overhead Entertain Center option is selected. |
| Overhead Bunk TV 30 | - | DEP | - | DEP | Included with Overhead Entertainment Center option. |
| Washer & Dryer | |||||
| Prep for Washer and Dryer | STD | - | - | - | |
| Interior Add On Options | |||||
| Central Vacuum System | OPT | OPT | OPT | OPT | |
| Driver's Compartment | |||||
| Driver's Compartment Features | |||||
| Black Leather Adjustable Driver and Passenger Seats | STD | STD | STD | STD | |
| Swivel Bases for Driver and Passenger Seats | STD | STD | STD | STD | |
| Heated Driver and Passenger Seats | STD | STD | STD | STD | |
| Leather Wrapped Steering Wheel with Integrated Controls | STD | STD | STD | STD | |
| Keyless Start | STD | STD | STD | STD | |
| Windshield with Filter Band | STD | STD | STD | STD | |
| Rain Sensor for Windshield Wipers | STD | STD | STD | STD | |
| Automatic LED Headlights | STD | STD | STD | STD | |
| Emergency Call System | STD | STD | STD | STD | |
| Smartphone Integration For Apple Carplay® and Android™ Auto | STD | STD | STD | STD | |
| Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen | STD | STD | STD | STD | |
| Ceiling Mounted Speakers | STD | STD | STD | STD | |
| Tray for Smartphones with Charging Ports | STD | STD | STD | STD | |
| Intelligent Navigation | STD | STD | STD | STD | |
| Auxiliary Start Switch | STD | STD | STD | STD | |
| Powered Windows | STD | STD | STD | STD | |
| Door-mounted Driver and Passenger Assist Handles | STD | STD | STD | STD | |
| Powered Door Locks | STD | STD | STD | STD | |
| Vinyl Floor Covering | STD | STD | STD | STD | |
| Privacy Curtain | STD | STD | STD | STD | |
| Instrument Cluster with Color Display | STD | STD | STD | STD | |
| Overhead Features | |||||
| Front Overhead Bunk | STD | STD | STD | STD | |
| Overhead Entertainment Center 31 | - | OPT | - | OPT | Replaces front TV over galley. Not combinable with cab skylight option. |
| Driver's Compartment Add On Options | |||||
| Side-view Cameras | OPT | OPT | OPT | OPT | |
| Cab Skylight 32 | OPT | OPT | OPT | OPT | Not combinable with overhead entertainment center option. |
| Dinette and Living Area | |||||
| Driver Side | |||||
| 52" Tri-fold Sofa Bed 33 | - | STD | - | - | Piece of furniture sleeps one comfortably. |
| 50" Theater Seating | - | OPT | - | - | |
| 72" Booth Dinette-Sleeper 34 | - | - | - | STD | Piece of furniture sleeps one comfortably. |
| 68" Theater Seating | - | - | - | OPT | |
| 70" Tri-fold Sofa Bed | - | - | - | OPT | |
| Driver Side Queen-sized Murphy Bed (60" x 74") with Sofa 35 | STD | - | - | STD | Piece of furniture sleeps two comfortably. |
| Passenger Side | |||||
| Passenger Side Workstation | STD | - | - | - | |
| Rear Queen-sized Murphy Bed (60" x 74") with Theater Seating and Chaise Lounge 36 | - | - | STD | - | Piece of furniture sleeps two comfortably. |
| Dual Opposing Single Seats | - | - | STD | - | |
| Kitchen | |||||
| Kitchen Features | |||||
| Stainless Steel Convection Microwave | STD | STD | STD | STD | |
| Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer | STD | STD | STD | STD | |
| Galley Overhead Cabinets | STD | STD | STD | STD | |
| Sliding Countertop Extension within Drawer | STD | STD | STD | STD | |
| Task Lighting | STD | STD | STD | STD | |
| Solid Surface Galley Countertop | STD | STD | STD | STD | |
| Refrigerator Options | |||||
| 12-Volt, 6.5-Cubic Foot Refrigerator 37 | DEP | - | - | DEP | Required with hydronic heating & electronic appliance equipped coach option. |
| Gas-Electric, 6.5-Cubic Foot Refrigerator 38 | DEP | - | - | DEP | Required with LP coach option. |
| 12-Volt, 5-Cubic Foot Refrigerator 39 | - | DEP | - | - | Required with hydronic heating & electronic appliance equipped coach option. |
| Gas-Electric, 5-Cubic Foot Refrigerator 40 | - | DEP | - | - | Required with LP coach option. |
| 12-Volt, 8-Cubic Foot Refrigerator 41 | - | - | DEP | - | Required with hydronic heating & electronic appliance equipped coach option. |
| Gas-Electric, 8-Cubic Foot Refrigerator 42 | - | - | DEP | - | Required with LP coach option. |
| Cooking Appliances | |||||
| One-Burner Induction Cooktop 43 | DEP | DEP | DEP | DEP | Replaces liquid propane cooktop when hydronic heating & electronic appliance equipped coach option is selected. |
| Liquid Propane Cooktop with Built-in Cover 44 | DEP | DEP | DEP | DEP | Only available with LP coach option. Not available with hydronic heating & electronic appliance equipped coach option. |
| Flip-down Counter Extension | - | - | STD | - | |
| Bedroom | |||||
| Bedroom Features | |||||
| LED Reading Lights | STD | STD | STD | STD | |
| Overhead Cabinets | STD | STD | STD | STD | |
| Wardrobe | STD | STD | STD | STD | |
| Mattress | |||||
| Queen-sized Murphy Bed (60" x 74") | STD | - | STD | STD | |
| (2) Twin Mattresses (32" x 76"), Combines into King Bed (86" x 76") 45 | - | STD | - | - | 25 LW's twin mattresses can now combine into a king-sized bed. |
| Bedroom Add On Options | |||||
| Sleeping Area Privacy Curtain | - | - | - | STD | |
| Mounted Bedroom TV | - | OPT | STD | OPT | |
| Bedroom Storage | |||||
| Pop-up Closet Storage | - | STD | - | - | |
| Closet Pull-out | - | STD | - | - | |
| Bathroom | |||||
| Bathroom Features | |||||
| Porcelain Vessel Sink with Chrome Faucet | STD | STD | STD | STD | |
| Handheld Shower Head | STD | STD | STD | STD | |
| Shower Skylight | STD | STD | STD | STD | |
| Towel and Toilet Paper Holders | STD | STD | STD | STD | |
| Roof Vent Fan | STD | STD | STD | STD | |
| LED Lighted Mirror | STD | STD | STD | STD | |
| Base Cabinet | STD | STD | STD | STD | |
| Shower | |||||
| One-Piece Molded Fiberglass Shower (30" x 36") | STD | - | STD | STD | |
| One-Piece Molded Fiberglass Shower (24" x 32") | - | STD | - | - |
