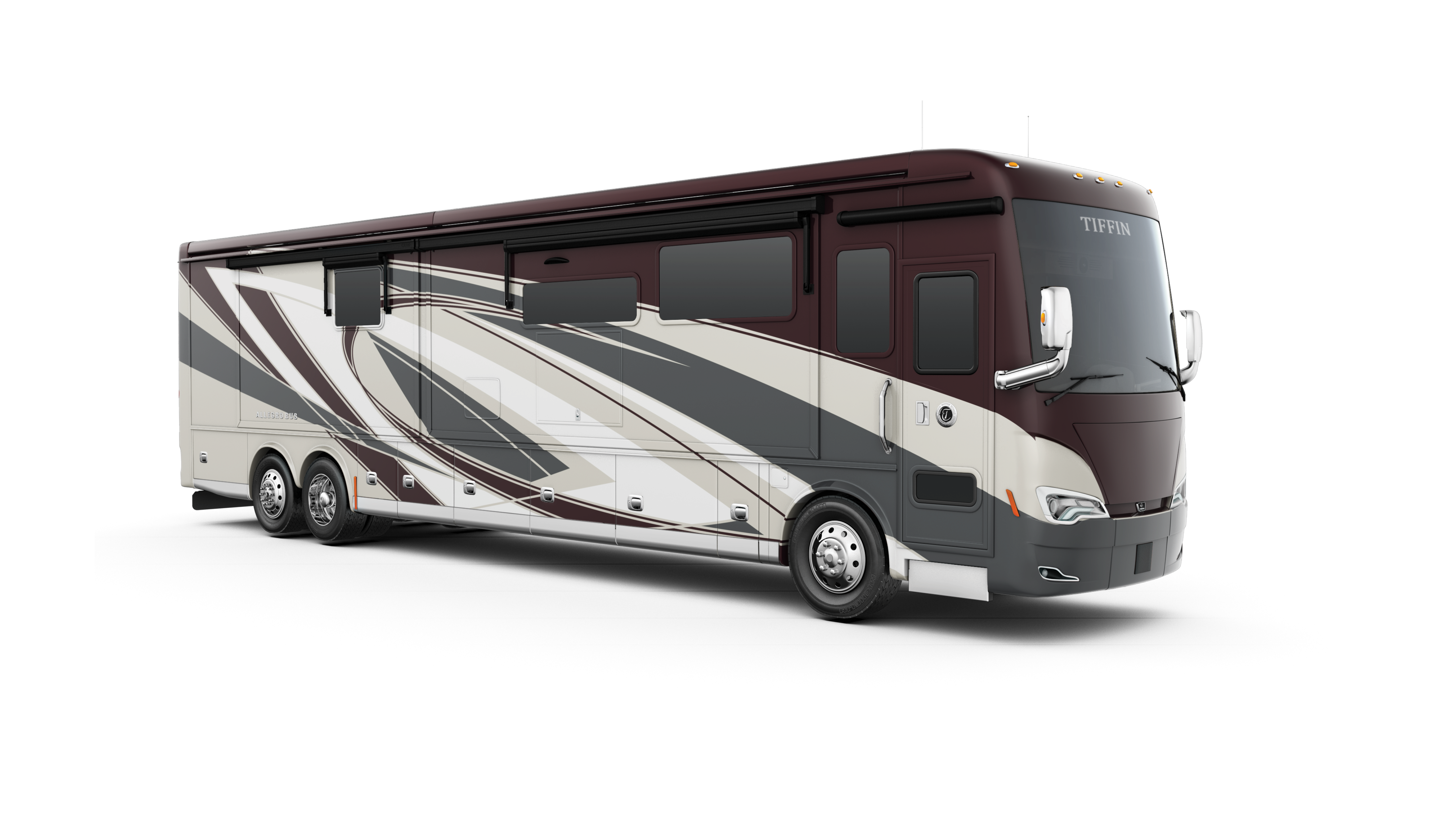

2025 Allegro Bus

Model Specifications

This page is best viewed on a desktop, laptop, or tablet.
Select multiple floorplans to compare specifications.

Expand All	Select 35 CP 40 IP 45 FP 45 OPP 45 BTP	Select 35 CP 40 IP 45 FP 45 OPP 45 BTP	Select 35 CP 40 IP 45 FP 45 OPP 45 BTP	Select 35 CP 40 IP 45 FP 45 OPP 45 BTP	Select 35 CP 40 IP 45 FP 45 OPP 45 BTP
Weights and Measures
Dimensions
Overall Length (approx.)¹	37' 5"	41'	45'	45'	45'
Wheel Base²	232"	276"	323"	323"	323"
Overall Width³	101"	101"	101"	101"	101"
Overall Height	13' 3"	13' 3"	13' 3"	13' 3"	13' 3"
Minimum Garage Height	14'	14'	14'	14'	14'
Interior Height	83"	83"	83"	83"	83"
Interior Width	96"	96"	96"	96"	96"
Basement Storage (cubic feet, approx.)	180	229	257	257	257
Square Footage (approx.)⁴	365	405	440	440	440
¹The approximated coach width and length does not include side-view mirrors or ladders.
²On tag axle coaches, measurement is taken from the center of the steer axle to the centerline between the drive and tag axle.
³The approximated coach width and length does not include side-view mirrors or ladders.
⁴Square footage was calculated with the slide-outs fully extended.
Weight Limits
GAWR-Front (pounds)	17,000	17,000	18,000	18,000	18,000
GAWR-Rear (pounds)	24,000	24,000	23,000	23,000	23,000
GAWR-Tag (pounds)	-	-	11,000	11,000	11,000
GVWR (pounds)	41,000	41,000	52,000	52,000	52,000
Maximum Trailer Weight (pounds)⁵	10,000	10,000	15,000	15,000	15,000
Hitch Rating (pounds)	10,000	10,000	15,000	15,000	15,000
GCWR (pounds)	51,000	51,000	67,000	67,000	67,000
⁵Maximum trailer weight is dependent on the loading and towing variables which include the GVWR, GAWR, and GCWR, as well as adequate trailer brakes.
Capacities
Fuel Tank (gallons)	150	150	150	150	150
DEF Tank (gallons)⁶	10	10	10	10	10
Fresh Water (gallons)	100	100	100	100	100
Grey Water (gallons)	100	100	100	100	100
Black Water (gallons)	55	55	55	55	55
⁶Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards.
Quantities
Number of Slideouts	3	4	4	4	3
Sleeping Capacity⁷	2 to 3	2 to 4	2 to 5	2 to 5	3 to 5
Sleeping Areas⁸	1 to 2	1 to 3	1 to 3	1 to 3	2 to 3
Seat Belts⁹	4	4 to 8	4 to 9	4 to 9	7 to 10
Seating Capacity¹⁰	6	7 to 10	7 to 11	7 to 11	9 to 12
⁷Dependent on furniture and dinette options.
⁸Dependent on furniture and dinette options.
⁹Dependent on furniture and dinette options.
¹⁰Dependent on furniture and dinette options.
Chassis and Drivetrain
Chassis and Drivetrain Features
PowerGlide® Rear Engine Diesel Chassis -OR- Freightliner® PowerGlide XC Raised Rail Rear Engine Diesel Chassis	STD	STD	STD	STD	STD
Two-wheel Drive	STD	STD	STD	STD	STD
Aluminum Wheels	STD	STD	STD	STD	STD
Front and Rear 315/80R 22.5 Tires	STD	STD	STD	STD	STD
Combination Valid™ Air Leveling System with Hydraulic Leveling Jacks	STD	STD	STD	STD	STD
Integrated Leveling Controls Through Valid™ Instrument Cluster	STD	STD	STD	STD	STD
ZF Independent Front Suspension	STD	STD	STD	STD	STD
Front Sway Bar	STD	STD	STD	STD	STD
Reyco® Granning® Air Ride Rear Suspension	STD	STD	STD	STD	STD
Custom Tuned Koni Shock Absorbers	STD	STD	STD	STD	STD
Side-mounted Radiator	STD	STD	STD	STD	STD
Front Disc Brakes	STD	STD	STD	STD	STD
Full Air Brake System with Automatic Slack Adjusters	STD	STD	STD	STD	STD
Three-stage Compression Brake	STD	STD	STD	STD	STD
Manual Parking Brake	STD	STD	STD	STD	STD
Air Force One Tow Vehicle Brake System	STD	STD	STD	STD	STD
Driver and Passenger Side Fuel Fill	STD	STD	STD	STD	STD
Tire Pressure Monitoring	STD	STD	STD	STD	STD
Adaptive Cruise Control	STD	STD	STD	STD	STD
Automatic Traction Control	STD	STD	STD	STD	STD
Collision Mitigation with Forward Warning and Active Braking	STD	STD	STD	STD	STD
Electronic Stability Control	STD	STD	STD	STD	STD
Cummins® L9 450 HP Diesel Engine with 1,250 lb-ft Torque¹¹	STD	STD	STD	STD	STD
210-Amp Alternator	STD	STD	STD	STD	STD
Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter	STD	STD	STD	STD	STD
(2) 12-Volt Flooded Lead-Acid Chassis Batteries	STD	STD	STD	STD	STD
Steerable Tag Axle	-	-	STD	STD	STD
Tag Axle Drum Brakes	-	-	STD	STD	STD
¹¹Peak horsepower achieved at 2,100 RPM. Peak torque achieved at 1,400 RPM.
Construction
Construction Features
Seamless One-piece Gel-coat Fiberglass Molded Roof Cap	STD	STD	STD	STD	STD
5 1/4" Formed Roof Insulation	STD	STD	STD	STD	STD
Tubular Aluminum Roof Skeleton Frames	STD	STD	STD	STD	STD
Extraordinaire™ Ducted Air Cooling System	STD	STD	STD	STD	STD
One-piece Molded Gel-coat Fiberglass Front and Rear Caps	STD	STD	STD	STD	STD
Steel Cockpit Overhead Support Frame	STD	STD	STD	STD	STD
Crane® Composites Noble® Select All-Composite Exterior Sidewalls	STD	STD	STD	STD	STD
Tubular Aluminum Wall Skeleton Frames	STD	STD	STD	STD	STD
High-performance Thermal Insulation in Sidewalls	STD	STD	STD	STD	STD
Engineered Wood Sub-flooring	STD	STD	STD	STD	STD
Laminated Elevated Sub-Flooring with 2 3/4" Thick Thermal Insulation	STD	STD	STD	STD	STD
Steel Basement Construction	STD	STD	STD	STD	STD
Rust Protective Undercoating	STD	STD	STD	STD	STD
Hydraulic Slide-out Mechanisms	STD	STD	STD	STD	STD
Extra Storage Chassis Construction¹²	STD	STD	STD	STD	STD
¹²Floor is constructed flush with top of rear engine. Allows for more basement storage and eliminates step in rear bedroom or bathroom walking area.
Electrical
Electrical Features
Hydronic Heating & Electronic Appliance Equipped Coach¹³	STD	STD	STD	STD	STD
Spyder Controls Multiplex System	STD	STD	STD	STD	STD
Firefly Integrations Eclipse Module¹⁴	STD	STD	STD	STD	STD
Centralized 10” Spyder System Main Monitor	STD	STD	STD	STD	STD
Passenger Console Spyder System Color Touchscreen	STD	STD	STD	STD	STD
Interior Entryway Spyder System Color Touchscreen	STD	STD	STD	STD	STD
Exterior Spyder System Color Touchscreen	STD	STD	STD	STD	STD
Additional Spyder Color Touchscreens Throughout Coach	STD	STD	STD	STD	STD
10.0-Kilowatt Onan® Quiet Diesel Generator	STD	STD	STD	STD	STD
Generator Slide Tray	STD	STD	STD	STD	STD
2,800-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control¹⁵	STD	STD	STD	STD	STD
(3) 15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation Drains	STD	STD	STD	STD	STD
Aqua-Hot® 450D Heat Exchanger¹⁶	STD	STD	STD	STD	STD
50-Amp Shore Power with Powered Retract Reel	STD	STD	STD	STD	STD
Prep for Solar Panels¹⁷	STD	STD	STD	STD	STD
Auxiliary Solar Port	STD	STD	STD	STD	STD
Energy Management System	STD	STD	STD	STD	STD
HD Over-the-air Antenna	STD	STD	STD	STD	STD
Park Cable and Ground Satellite Hook-up	STD	STD	STD	STD	STD
Prep for In-motion Satellite¹⁸	STD	STD	STD	STD	STD
Blu-ray™ Player	STD	STD	STD	STD	STD
Prewiring for Winegard® Trav’ler™ Satellite	STD	STD	STD	STD	STD
Satellite Receiver¹⁹	STD	STD	STD	STD	STD
12-Volt Breaker Panel	STD	STD	STD	STD	STD
12-Volt Disconnect Switch	STD	STD	STD	STD	STD
Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter	STD	STD	STD	STD	STD
Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay	STD	STD	STD	STD	STD
110-Volt Exterior Receptacle	STD	STD	STD	STD	STD
Surge Guard® Transfer Switch	STD	STD	STD	STD	STD
USB Receptacles Throughout Coach	STD	STD	STD	STD	STD
¹³Space heating, water heating, and cooking appliances are electrically powered. Formerly known as "All-Electric Coach".
¹⁴Download the accompanying Vegatouch app to control your coach locally offline using Bluetooth and remotely anywhere there’s internet for the coach module (Local control only for slides and awning). Includes a free 90-day remote access trial.
¹⁵Automatic generator start capabilities controlled through Spyder Controls Multiplex System.
¹⁶Aqua-Hot® heat exchanger provides both heated air and water.
¹⁷Includes docking ports for aftermarket solar panels.
¹⁸High-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network®.
¹⁹Requires subscription.
House Batteries
(6) 6-Volt, 225-Amp Hours Flooded Lead-Acid House Batteries	STD	STD	STD	STD	STD
(6) 6-Volt, 300-Amp Hours Extended Cycle AGM House Batteries	OPT	OPT	OPT	OPT	OPT
(3) 12-Volt, 270-Amp Hours Lithium House Batteries	OPT	OPT	OPT	OPT	OPT
Battery Slide-out Tray²⁰	DEP	DEP	DEP	DEP	DEP
²⁰Standard with flooded and extended cycle AGM batteries. Not available with lithium batteries.
Solar Panels
(3) 200-Watt Solar Panels with (1) 30-Amp Controller	OPT	OPT	OPT	OPT	OPT
(6) 200-Watt Solar Panels with (2) 30-Amp Controllers	-	OPT	OPT	OPT	OPT
Internet & Phone
Starlink® Pro²¹	STD	STD	STD	STD	STD
²¹Requires subscription.
Plumbing
Plumbing Features
Aqua-Hot® 450D Heat Exchanger²²	STD	STD	STD	STD	STD
Aqua View Showermiser™	STD	STD	STD	STD	STD
Water Filter	STD	STD	STD	STD	STD
Water Pump Switch Access from Spyder System and Sewer Bay Board	STD	STD	STD	STD	STD
Low-point Water Drain Lines	STD	STD	STD	STD	STD
Black Holding Tank Flush System	STD	STD	STD	STD	STD
Grey Tank Flush System	STD	STD	STD	STD	STD
Gravity Water Fill	STD	STD	STD	STD	STD
Heated Fresh and Holding Tank Compartment via Heat Duct	STD	STD	STD	STD	STD
SeeLeveL™ Tank Monitor	STD	STD	STD	STD	STD
Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports	STD	STD	STD	STD	STD
Exterior Rinse Hose with Shower Head	STD	STD	STD	STD	STD
Sewer Bay Hand Sanitizer and Paper Towel Holders	STD	STD	STD	STD	STD
Fresh Water Hose with Power Retract Reel	STD	STD	STD	STD	STD
Sewer Hose Storage	STD	STD	STD	STD	STD
²²Aqua-Hot® heat exchanger provides both heated air and water.
Exterior
Exterior Features
Full-body Paint with (4) Layers of Clear Coat	STD	STD	STD	STD	STD
Striped Slide-out Endwalls	STD	STD	STD	STD	STD
High Performance Protective Film on Front Cap and Select Areas	STD	STD	STD	STD	STD
Girard® Powered Door Awning with Integrated LED Lighting	STD	STD	STD	STD	STD
Girard® Slide-out Toppers	STD	STD	STD	STD	STD
Side-swinging Exterior Storage Doors with Gas Shocks	STD	STD	STD	STD	STD
Lockable Handles on Compartment Doors	STD	STD	STD	STD	STD
Motion-sensor Lights in Cargo Bay	STD	STD	STD	STD	STD
120-Volt and 12-Volt Outlets Inside Cargo Bays	STD	STD	STD	STD	STD
Pass-through Basement Storage	STD	STD	STD	STD	STD
Charcoal Carpet Cargo Walls	STD	STD	STD	STD	STD
Fiberglass Reinforced Plastic Basement Floor	STD	STD	STD	STD	STD
Frameless, Dual-Pane Windows	STD	STD	STD	STD	STD
Exterior Patio Light	STD	STD	STD	STD	STD
Fog Lights	STD	STD	STD	STD	STD
Daytime Running Lights	STD	STD	STD	STD	STD
Docking Lights	STD	STD	STD	STD	STD
Exterior Ground Effects Lighting	STD	STD	STD	STD	STD
Chrome Power Heated Side-View Mirrors with Integrated Cameras	STD	STD	STD	STD	STD
Exterior TV with Soundbar	STD	STD	STD	STD	STD
Fast Charge USB ports within Exterior TV Compartment	STD	STD	STD	STD	STD
Lightweight Entry Door with Integrated Screen	STD	STD	STD	STD	STD
Deadbolt Front Entrance Lock	STD	STD	STD	STD	STD
Lighted Entry Door Grab Handle	STD	STD	STD	STD	STD
Automatic Stainless Steel Double Entry Step	STD	STD	STD	STD	STD
Keyless Entry System for Front Entrance and Select Compartment Doors	STD	STD	STD	STD	STD
Mud Flaps	STD	STD	STD	STD	STD
Custom Rock Guard	STD	STD	STD	STD	STD
(2) Girard® Roof-mounted Powered Patio Awnings with Integrated LED Lighting and Dual Pitch Feature	STD	STD	STD	STD	STD
Girard® Powered Window Awning Package	STD	STD	STD	STD	STD
Cargo Door Stainless Steel Rocker Trim	STD	STD	STD	STD	STD
Basement Freezer	STD	STD	STD	STD	STD
Exterior Lighting under Slide-out	STD	STD	STD	STD	STD
Lippert™ On-The-Go™ Telescoping Ladder²³	STD	STD	STD	STD	STD
²³All units will ship with a Lippert™ On-The-Go™ Prepped Receiver installed.
Slide Trays
(1) Powered Storage Compartment Slide-out Tray²⁴	OPT	OPT	OPT	OPT	OPT
(2) Powered Storage Compartment Slide-out Trays²⁵	-	OPT	OPT	OPT	OPT
²⁴Trays slide out on both sides of motorhome.
²⁵Trays slide out on both sides of motorhome.
Paint Color Options
Cinderwood Full Body Paint	OPT	OPT	OPT	OPT	OPT
Arctic Sapphire Full Body Paint	OPT	OPT	OPT	OPT	OPT
White Mahogany Full Body Paint	OPT	OPT	OPT	OPT	OPT
Frosted Granite Full Body Paint	OPT	OPT	OPT	OPT	OPT
Paint Scheme Options
Generation 13 Exterior Paint Scheme	OPT	OPT	OPT	OPT	OPT
Generation 14 Exterior Paint Scheme	OPT	OPT	OPT	OPT	OPT
Interior
Interior Features
Handcrafted Overhead Cabinetry	STD	STD	STD	STD	STD
Solid Surface Step Well with Tile Inserts	STD	STD	STD	STD	STD
Powered Step Well Cover	STD	STD	STD	STD	STD
Storage Compartment Within Entry Steps	STD	STD	STD	STD	STD
Recessed Step Well Lighting	STD	STD	STD	STD	STD
Living Area TV	STD	STD	STD	STD	STD
Solid Surface Galley Countertop	STD	STD	STD	STD	STD
Handcrafted Slide-out Fascia	STD	STD	STD	STD	STD
Soft Touch Vinyl Ceiling	STD	STD	STD	STD	STD
Dimmable LED Lighting	STD	STD	STD	STD	STD
Prep for Washer and Dryer	STD	STD	STD	STD	STD
Carbon Monoxide Detector	STD	STD	STD	STD	STD
LPG Leak Detector	STD	STD	STD	STD	STD
Smoke Detector	STD	STD	STD	STD	STD
Fire Extinguisher	STD	STD	STD	STD	STD
Powered Solar and Privacy Shades	STD	STD	STD	STD	STD
Soft-closing Drawers	STD	STD	STD	STD	STD
Powered Roof Vents	STD	STD	STD	STD	STD
Central Vacuum System with VacPan® Automatic Dustpan	STD	STD	STD	STD	STD
Interior Grab Handle at Entry Door	STD	STD	STD	STD	STD
Egress Windows Throughout Coach	STD	STD	STD	STD	STD
Stacked Washer and Dryer	STD	STD	STD	STD	STD
Gold Heat® Dual Zones Heated Tile Floor	STD	STD	STD	STD	STD
Interior Décor Packages
Chai	OPT	OPT	OPT	OPT	-
Picasso	OPT	OPT	OPT	OPT	-
Silver Lake	OPT	OPT	OPT	OPT	-
Great Smoky Mountains	-	-	-	-	STD
Upholstery Fabrics
Tottori Tatami Mat	OPT	OPT	OPT	OPT	-
Tottori Rice Paper	OPT	OPT	OPT	OPT	STD
Cabinetry Color
White Linen	OPT	OPT	OPT	OPT	OPT
Platinum	OPT	OPT	OPT	OPT	OPT
Black Truffle	OPT	OPT	OPT	OPT	OPT
Glazed Canyon Cherry	OPT	OPT	OPT	OPT	OPT
Glazed Honey Natural Cherry	OPT	OPT	OPT	OPT	OPT
Floor Tiles
Catalina Maple Glazed Porcelain Tile	OPT	OPT	OPT	OPT	-
Positano II Blanco Glazed Porcelain Tile	OPT	OPT	OPT	OPT	-
Native Birch Matte Porcelain Tile	OPT	OPT	OPT	OPT	-
Savoir Porcelain Tile	-	-	-	-	STD
Slide-out Flooring
Tile Slide-out Floors	-	-	STD	STD	STD
Interior Add On Options
Standalone Living Area Fireplace²⁶	OPT	-	-	-	-
²⁶Not compatible with beverage center on 35 CP.
Driver's Compartment
Driver's Compartment Features
Power Driver and Passenger Seats	STD	STD	STD	STD	STD
Dual Driver And Passenger Seat Armrests	STD	STD	STD	STD	STD
Swivel Bases for Driver and Passenger Seats	STD	STD	STD	STD	STD
Powered Passenger Seat Footrest	STD	STD	STD	STD	STD
Integrated Seat Belts on Driver and Passenger Seats	STD	STD	STD	STD	STD
Lumbar Support on Driver and Passenger Seats	STD	STD	STD	STD	STD
Tilt and Telescoping Steering Wheel with Integrated Controls	STD	STD	STD	STD	STD
Adjustable Accelerator and Brake Pedals	STD	STD	STD	STD	STD
Ergonomic Dash with Carbon Fiber Accents	STD	STD	STD	STD	STD
Mounted Dash Fans	STD	STD	STD	STD	STD
Cupholders on Driver and Passenger Side	STD	STD	STD	STD	STD
Valid™ Liquid Crystal Display Instrument Cluster with Integrated Leveling Controls	STD	STD	STD	STD	STD
(2) Center Storage Drawers	STD	STD	STD	STD	STD
Generator Start & Stop Rocker Switch	STD	STD	STD	STD	STD
USB Dash Receptacles	STD	STD	STD	STD	STD
12-Volt Dash Receptacle	STD	STD	STD	STD	STD
Backlit Dash Rocker Switches	STD	STD	STD	STD	STD
Passenger Console Wireless Phone Charger	STD	STD	STD	STD	STD
7" Passenger Console Advanced Monitor System Touchscreen	STD	STD	STD	STD	STD
Driver Console Stationary Mount Phone Charger	STD	STD	STD	STD	STD
Driver and Passenger Map Lights	STD	STD	STD	STD	STD
One-piece Panoramic Windshield	STD	STD	STD	STD	STD
Single-motor Intermittent Windshield Wipers	STD	STD	STD	STD	STD
Automatic LED Headlights	STD	STD	STD	STD	STD
Side-view Cameras²⁷	STD	STD	STD	STD	STD
Color Back-up Camera	STD	STD	STD	STD	STD
10" Glass Panel Camera Monitor	STD	STD	STD	STD	STD
Blind Spot Monitoring System	STD	STD	STD	STD	STD
Advanced Monitor System featuring Media Center, Bluetooth®, and AM, FM, and Satellite Radio²⁸	STD	STD	STD	STD	STD
Ceiling Mounted Speakers	STD	STD	STD	STD	STD
JBL® Sound System²⁹	STD	STD	STD	STD	STD
In-dash Navigation System via Advanced Monitor System's 10" Glass Panel Touchscreen	STD	STD	STD	STD	STD
Overhead Cabinetry with Wooden Panel Doors	STD	STD	STD	STD	STD
Auxiliary Start Switch	STD	STD	STD	STD	STD
Concealed Air Horn	STD	STD	STD	STD	STD
Powered Opening Driver Side Window	STD	STD	STD	STD	STD
Solid, Non-opening Passenger Side Window	STD	STD	STD	STD	STD
Powered Solar and Privacy Windshield Shade	STD	STD	STD	STD	STD
Powered Solar and Privacy Shades on Side Windows	STD	STD	STD	STD	STD
²⁷Integrated within side-view mirrors and activated by turn signals.
²⁸Includes a 10" Touchscreen LCD monitor for navigation system and entertainment, a 10" camera monitor, and a 7" passenger monitor. Subscription required for satellite radio. Now standard for all floorplans.
²⁹Includes amplifier and (2) subwoofers. Now standard for all floorplans.
Driver's Compartment Add On Options
360˚ View Camera	OPT	OPT	OPT	OPT	OPT
Front Overhead TV	OPT	OPT	OPT	OPT	OPT
Dinette and Living Area
Driver Side Furniture
74" Air Coil Sofa Bed	STD	STD	-	-	-
74" Theater Seating	OPT	OPT	-	-	-
80" Air Coil Sofa Bed with Lift TV³⁰	-	-	STD	-	-
80" DE Sofa Bed with Lift TV³¹	-	-	OPT	-	-
83" Air Coil Sofa Bed³²	-	-	-	STD	STD
83" Theater Seating	-	-	-	OPT	OPT
Ottoman with Internal Storage³³	DEP	DEP	DEP	DEP	DEP
³⁰Mattress measures 72" x 52" and includes internal pump. Lift TV deletes cabinetry over furniture.
³¹Piece of furniture converts to 73" x 49" sleeping area. Lift TV deletes cabinetry over furniture.
³²Mattress measures 72" x 59" and includes internal pump.
³³Standard unless theater seating option is chosen. Only one ottoman per motorhome.
Passenger Side Dinette
75" Dinette with Chairs and Lift TV³⁴	STD	-	-	-	-
75" Dinette Bar with Lift TV³⁵	OPT	-	-	-	-
75" Dinette with Chairs³⁶	-	STD	STD	STD	STD
75" U-shaped Dinette	-	OPT	OPT	OPT	OPT
75" Dinette Bar³⁷	-	-	OPT	-	-
³⁴Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. Lift TV deletes cabinetry over dinette.
³⁵Includes (2) freestanding accent chairs. Lift TV deletes cabinetry over dinette.
³⁶Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs.
³⁷Includes (2) freestanding accent chairs.
Passenger Side Furniture
68" DE Sofa Bed with Lift TV³⁸	-	STD	-	-	-
68" Air Coil Sofa Bed with Lift TV³⁹	-	OPT	-	-	-
Recliner and Lift TV⁴⁰	-	OPT	-	-	-
88" DE Sofa Bed⁴¹	-	-	STD	-	-
88" Air Coil Sofa Bed⁴²	-	-	OPT	-	-
88" Theater Seating	-	-	OPT	-	-
Ottoman with Internal Storage⁴³	-	-	DEP	-	-
70" DE Sofa Bed with Lift TV⁴⁴	-	-	-	STD	STD
70" Air Coil Sofa Bed with Lift TV⁴⁵	-	-	-	OPT	OPT
Recliner and Lift TV with Fireplace⁴⁶	-	OPT	-	OPT	OPT
³⁸Piece of furniture converts to 61" x 49" sleeping area. Lift TV deletes cabinetry over furniture.
³⁹Mattress measures 72" x 52" and includes internal pump. Cannot option air coil sofa on both driver and passenger sides. Lift TV deletes cabinetry over furniture.
⁴⁰Lift TV deletes cabinetry over furniture.
⁴¹Piece of furniture converts to 81" x 49" sleeping area.
⁴²Mattress measures 72" x 59" and includes internal pump.
⁴³Standard unless theater seating option is chosen. Only one ottoman per motorhome.
⁴⁴Lift TV deletes cabinetry over furniture.
⁴⁵Mattress measures 72" x 52" and includes internal pump. Lift TV deletes cabinetry over furniture.
⁴⁶Lift TV deletes cabinetry over furniture.
Kitchen
Kitchen Features
1.7-Cubic Foot Smart Convection Microwave with Air Fry	STD	STD	STD	STD	STD
Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer	STD	STD	STD	STD	STD
Built-in Soap Dispenser	STD	STD	STD	STD	STD
Galley Overhead Cabinets with Pull-out Drawers	STD	STD	STD	STD	STD
Panoramic Galley Window	STD	STD	STD	STD	STD
Task Lighting	STD	STD	STD	STD	STD
Toe Kick Lighting	STD	STD	STD	STD	STD
Under Counter LED Accent Lighting	STD	STD	STD	STD	STD
Pantry Lighting	STD	STD	STD	STD	STD
Full Tile Backsplash	STD	STD	STD	STD	STD
Solid Surface Galley Countertop, Sink, and Cooktop Cover	STD	STD	STD	STD	STD
Pull-out Utility Box Located Under Sink	STD	STD	STD	STD	STD
Electronic Release Expand-An-Island	-	STD	STD	STD	STD
Drawer-style Dishwasher	STD	STD	STD	STD	STD
Refrigerator
22-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer⁴⁷	STD	-	STD	-	-
25-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer⁴⁸	-	STD	-	STD	STD
Decorative Wooden Refrigerator Panel	OPT	OPT	OPT	OPT	OPT
⁴⁷Refrigerator volume is approximated.
⁴⁸Refrigerator volume is approximated.
Cooking Appliances
Two-Burner Induction Cooktop	STD	STD	STD	STD	STD
Wolf® Induction Cooktop	OPT	OPT	OPT	OPT	OPT
Kitchen Add On Options
InSinkErator® Instant Hot Water Faucet	OPT	OPT	OPT	OPT	OPT
12" Beverage Center⁴⁹	OPT	-	OPT	OPT	OPT
⁴⁹Not combinable with fireplace on 35 CP.
Bedroom
Bedroom Features
Under Bed Storage	STD	STD	STD	STD	STD
Bedside Windows	STD	STD	STD	STD	STD
Bed Comforter with Throw Pillows	STD	STD	STD	STD	STD
Handcrafted Privacy Door	STD	STD	STD	STD	STD
LED Reading Lights	STD	STD	STD	STD	STD
Nightstand with Solid Surface Tops	STD	STD	STD	STD	STD
Mounted Bedroom TV	STD	STD	STD	STD	STD
Centralized Entertainment Center⁵⁰	STD	STD	STD	STD	STD
Ceiling Fan	STD	STD	STD	STD	STD
Decorative Handcrafted Wood Ceiling Ring	STD	STD	STD	STD	STD
Safe	STD	STD	STD	STD	STD
Memory Foam King Mattress (72" x 80") with Power Smart Lift	STD	STD	STD	STD	STD
Shoe Rack	-	-	STD	STD	STD
Laundry Hamper	STD	STD	STD	-	-
⁵⁰Houses Blu-ray™ player, satellite receiver, and cable TV hook-up.
Bed Slide
Overhead Cabinets with Headboard	STD	STD	STD	STD	STD
Window at Head of Bed⁵¹	OPT	OPT	OPT	OPT	OPT
⁵¹Window option removes overhead cabinets.
Bedroom Storage
Floor-to-ceiling Closet Space	STD	STD	STD	-	-
Walk-in Closet	-	-	-	STD	STD
Solid Surface Countertops within Storage Spaces	-	-	STD	STD	STD
Bedroom Add On Options
Bedroom Fireplace	OPT	OPT	OPT	OPT	OPT
Bedroom Egress Door⁵²	DEP(OPT)	DEP(OPT)	-	DEP(OPT)	DEP(OPT)
⁵²Available as an add-on option when combined with overhead cabinet with headboard. Not available with window at head of bed.
Bathroom
Bathroom Features
(2) Porcelain Master Bathroom Sinks	STD	STD	STD	STD	STD
Solid Surface Lavatory Top	STD	STD	STD	STD	STD
Teak Folding Shower Seat	STD	STD	STD	STD	STD
Shower Head with Detachable Hand-held Shower Wand	STD	STD	STD	STD	STD
Shower Skylight	STD	STD	STD	STD	STD
Shower LED Light with Sliding Cover	STD	STD	STD	STD	STD
Towel and Toilet Paper Holders	STD	STD	STD	STD	STD
Medicine Cabinet with Tri-view Vanity Mirror	STD	STD	STD	STD	STD
Roof Vent Fan	STD	STD	STD	STD	STD
Base Cabinet	STD	STD	STD	STD	STD
Number of Bathrooms
(1) Bathroom	STD	-	-	-	-
(1) Bathroom and (1) Half-bath⁵³	-	STD	STD	STD	STD
⁵³All half-baths contain a toilet and a solid surface countertop with a single porcelain sink.
Shower
Solid Surface Shower Walls with Inlaid Tile and Residential Glass Door (32" x 40")	STD	STD	-	-	-
Solid Surface Shower Walls with Inlaid Tile and Residential Glass Door (32" x 48")	-	-	-	STD	STD
Solid Surface Shower Walls with Inlaid Tile and Residential Glass Door (34" x 52.5")	-	-	STD	-	-
Toilet
(1) Macerator Toilet	STD	-	-	-	-
(1) Electric Gravity Flush Toilet and (1) Macerator Toilet	-	STD	STD	STD	STD
Bathroom Egress Door	-	-	STD	-	-
Additional Add-On Options
Factory Delivery Program
Factory Delivery	-	-	-	-	OPT

Shopping Tools

Find Your Perfect Ride

OWNERS

Roadside Assistance

Company

Find Your Perfect Ride.

FIND YOUR PERFECT RIDE

2025 Allegro Bus

Model Specifications
