Phaeton Specifications
Close Specs
Phaeton
Select multiple floor plans to compare.
35 CH | 37 BH | 40 IH | 44 OH | Phaeton footnotes | |
Weights and Measures | |||||
Dimensions | |||||
Overall Length (approx.) 1 | 37' 9" | 38' 2" | 41' 4" | 45' | The approximated coach width and length does not include side-view mirrors or ladders. |
Wheel Base 2 | 222" | 234" | 266" | 310" | On tag axle coaches, measurement is taken from the center of the steer axle to the centerline between the drive and tag axle. |
Overall Width 3 | 101" | 101" | 101" | 101" | The approximated coach width and length does not include side-view mirrors or ladders. |
Overall Height 4 | 13' 3" | 13' 3" | 13' 3" | 13' 3" | 37 BH's overall height increased from 12' 7" to 13' 3" due to new XSH Chassis. |
Minimum Garage Height | 14" | 14' | 14' | 14' | |
Interior Height | 83" | 83" | 83" | 83" | |
Interior Width | 96" | 96" | 96" | 96" | |
Square Footage (approx.) 5 | 375 | 375 | 405 | 440 | Square footage was calculated with the slide-outs fully extended. |
Basement Storage (cubic feet, approx.) 6 | 131 | 162 | 232 | 232 | 37 BH's basement storage increased from 122 to 162 cubic feet due to new XSH Chassis. |
Weight Limits | |||||
GAWR-Front (pounds) | 15660 | 15660 | 15660 | 15660 | |
GAWR-Tag Axle (pounds) | - | - | - | 10000 | |
GAWR-Rear (pounds) | 24000 | 24000 | 24000 | 20000 | |
GVWR (pounds) | 39660 | 39660 | 39660 | 45660 | |
Maximum Trailer Weight (pounds) 7 | 10000 | 10000 | 10000 | 10000 | Maximum trailer weight is dependent on the loading and towing variables which include the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. |
Hitch Rating (pounds) | 10000 | 10000 | 10000 | 10000 | |
GCWR (pounds) | 49660 | 49660 | 49660 | 55660 | |
Capacities | |||||
Fuel Tank (gallons) | 100 | 100 | 100 | 100 | |
DEF Tank (gallons) - PowerGlide® Chassis 8 | 10 | 10 | 10 | 10 | Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards. |
DEF Tank (gallons) - Freightliner® Chassis 9 | 13 | 13 | 13 | 13 | Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards. |
Fresh Water (gallons) | 100 | 100 | 100 | 100 | |
Grey Water (gallons) | 100 | 100 | 100 | 100 | |
Black Water (gallons) | 55 | 55 | 55 | 55 | |
LPG Tank (gallons) 10 | 35.7 | 35.7 | 35.7 | 0 | LPG tank can only be filled to 80% capacity. |
Quantities | |||||
Number of Slideouts | 3 | 3 | 4 | 4 | |
Sleeping Capacity 11 | 2 to 4 | 2 to 6 | 2 to 6 | 2 to 8 | Dependent on furniture and dinette options. |
Sleeping Areas 12 | 1 to 3 | 1 to 5 | 1 to 5 | 1 to 5 | Dependent on furniture and dinette options. |
Seat Belts 13 | 4 | 4 to 8 | 4 to 8 | 4 to 10 | Dependent on furniture and dinette options. |
Seating Capacity 14 | 6 | 7 to 10 | 7 to 10 | 7 to 12 | Dependent on furniture and dinette options. |
Chassis and Drivetrain | |||||
Chassis and Drivetrain Features | |||||
Cummins® L9 450 HP Diesel Engine with 1,250 lb-ft Torque 15 | STD | STD | STD | STD | Peak horsepower achieved at 2,100 RPM. Peak torque achieved at 1,400 RPM. Now standard on all floorplans. |
Two-wheel Drive | STD | STD | STD | STD | |
Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter | STD | STD | STD | STD | |
Front and Rear 295/80R 22.5 Tires | STD | STD | STD | STD | |
(2) 12-Volt Flooded Lead-Acid Chassis Batteries | STD | STD | STD | STD | |
Hydraulic Leveling Jacks with Control Panel | STD | STD | STD | STD | |
ZF Independent Front Suspension | STD | STD | STD | STD | |
Rear Radiator | STD | STD | STD | STD | |
Front Disc Brakes and Rear Drum Brakes | STD | STD | STD | STD | |
Full Air Brake System with Automatic Slack Adjusters | STD | STD | STD | STD | |
Three-stage Compression Brake | STD | STD | STD | STD | |
Manual Parking Brake | STD | STD | STD | STD | |
Driver and Passenger Side Fuel Fill | STD | STD | STD | STD | |
Tire Pressure Monitoring | STD | STD | STD | STD | |
Adaptive Cruise Control | STD | STD | STD | STD | |
Automatic Traction Control | STD | STD | STD | STD | |
Collision Mitigation with Forward Warning and Active Braking | STD | STD | STD | STD | |
Electronic Stability Control | STD | STD | STD | STD | |
Chassis Options | |||||
PowerGlide® Raised Rail Rear Engine Diesel Chassis 16 | STD | OPT | - | - | Option now available on 37 BH. |
Freightliner® XCR Raised Rail Rear Engine Diesel Chassis 17 | - | OPT | STD | STD | Option now available on 37 BH. |
Alternator Options | |||||
210-Amp Alternator 18 | STD | DEP | - | - | Standard on PowerGlide® Chassis option. Not available on Freightliner® Chassis. |
240-Amp Alternator 19 | - | DEP | STD | STD | Standard on Freightliner® Chassis. Not available on PowerGlide® Chassis option. |
Wheel Options | |||||
Aluminum Wheels 20 | DEP | DEP | DEP | DEP | Standard with all exterior color packages, excluding Midnight Edition. |
Black Aluminum Wheels 21 | DEP | DEP | DEP | DEP | Standard with Midnight Edition exterior color package. Not available with other exterior color packages. |
Front Sway Bar 22 | STD | DEP | - | - | Standard on PowerGlide® Chassis option. Not available on Freightliner® Chassis. |
Rear Suspension Options | |||||
Freightliner® V-Series V-Ride Rear Suspension 23 | - | DEP | STD | STD | Standard on Freightliner® Chassis. Not available on PowerGlide® Chassis option. |
Reyco® Granning® Air Ride Rear Suspension 24 | STD | DEP | - | - | Standard on PowerGlide® Chassis option. Not available on Freightliner® Chassis. |
Shock Options | |||||
Custom Tuned Sachs® Shock Absorbers 25 | - | DEP | STD | STD | Standard on Freightliner® Chassis. Not available on PowerGlide® Chassis option. |
Custom Tuned Koni Shock Absorbers 26 | STD | DEP | - | - | Standard on PowerGlide® Chassis option. Not available on Freightliner® Chassis. |
Chassis and Drivetrain Add On Options | |||||
Steerable Tag Axle | - | - | - | STD | |
Construction | |||||
Construction Features | |||||
Seamless One-piece Gel-coat Fiberglass Molded Roof Cap | STD | STD | STD | STD | |
5 1/4" Formed Roof Insulation | STD | STD | STD | STD | |
Tubular Aluminum Roof Skeleton Frames | STD | STD | STD | STD | |
Extraordinaire™ Ducted Air Cooling System | STD | STD | STD | STD | |
One-piece Molded Gel-coat Fiberglass Front and Rear Caps | STD | STD | STD | STD | |
Steel Cockpit Overhead Support Frame | STD | STD | STD | STD | |
Crane® Composites Noble® Select All-Composite Exterior Sidewalls | STD | STD | STD | STD | |
Tubular Aluminum Wall Skeleton Frames | STD | STD | STD | STD | |
High-performance Thermal Insulation in Sidewalls | STD | STD | STD | STD | |
Engineered Wood Sub-flooring | STD | STD | STD | STD | |
Laminated Elevated Sub-Flooring with 2 3/4" Thick Thermal Insulation | STD | STD | STD | STD | |
Steel Basement Construction | STD | STD | STD | STD | |
Rust Protective Undercoating | STD | STD | STD | STD | |
Hydraulic Slide-out Mechanisms | STD | STD | STD | STD | |
Extra Storage Chassis Construction 27 | STD | STD | STD | STD | Floor is constructed flush with top of rear engine. Allows for more basement storage and eliminates step in rear bedroom or bathroom walking area. Now available on 37 BH. |
Electrical | |||||
Electrical Features | |||||
Spyder Controls Multiplex System | STD | STD | STD | STD | |
Firefly Integrations Eclipse Module 28 | STD | STD | STD | STD | Download the accompanying Vegatouch app to control your coach locally offline using Bluetooth and remotely anywhere there’s internet for the coach module (Local control only for slides and awning). Includes a free 90-day remote access trial. |
Centralized 10” Spyder System Main Monitor | STD | STD | STD | STD | |
Passenger Console Spyder System Color Touchscreen | STD | STD | STD | STD | |
Interior Entryway Spyder System Color Touchscreen | STD | STD | STD | STD | |
Exterior Spyder System Color Touchscreen | STD | STD | STD | STD | |
Additional Spyder Color Touchscreens Throughout Coach | STD | STD | STD | STD | |
10.0-Kilowatt Onan® Quiet Diesel Generator | STD | STD | STD | STD | |
Generator Slide Tray | STD | STD | STD | STD | |
2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control 29 | STD | STD | STD | STD | Automatic generator start capabilities controlled through Spyder Controls Multiplex System. |
(3) 15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation Drains | STD | STD | STD | STD | |
50-Amp Shore Power with Powered Retract Reel | STD | STD | STD | STD | |
Auxiliary Solar Port | STD | STD | STD | STD | |
Energy Management System | STD | STD | STD | STD | |
HD Over-the-air Antenna | STD | STD | STD | STD | |
Park Cable and Ground Satellite Hook-up | STD | STD | STD | STD | |
Prep for In-motion Satellite | STD | STD | STD | STD | |
Blu-ray™ Player | STD | STD | STD | STD | |
Satellite Receiver 30 | STD | STD | STD | STD | Requires subscription. |
12-Volt Breaker Panel | STD | STD | STD | STD | |
12-Volt Disconnect Switch | STD | STD | STD | STD | |
Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter | STD | STD | STD | STD | |
Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay | STD | STD | STD | STD | |
110-Volt Exterior Receptacle | STD | STD | STD | STD | |
Surge Guard® Transfer Switch | STD | STD | STD | STD | |
USB Receptacles Throughout Coach | STD | STD | STD | STD | |
Heating and Cooktop Power Source Options | |||||
Liquid Propane (LP) Coach 31 | STD | STD | STD | - | Propane is used to power the ducted furnaces, the water heater, and the liquid propane cooktop. |
Hydronic Heating & Electronic Appliance Equipped Coach 32 | OPT | OPT | OPT | STD | Replaces the ducted furnaces, the Truma AquaGo™ water heater, and the liquid propane cooktop with an Aqua-Hot® heat exchanger and induction cooktops. Removes LPG tank. Formerly known as "All-Electric Coach". |
House Battery Options | |||||
(6) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries | STD | STD | STD | STD | |
(6) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries | OPT | OPT | OPT | OPT | |
(3) 12-Volt, 270-Amp Hours Lithium House Batteries | OPT | OPT | OPT | OPT | |
Battery Slide-out Tray 33 | DEP | DEP | DEP | DEP | Standard with flooded and extended cycle AGM batteries. Not available with lithium batteries. |
Space Heating Options | |||||
(1) 30,000-BTU and (1) 20,000-BTU Ducted Furnaces 34 | DEP | DEP | - | - | Standard with LP coach option. |
(2) 30,000-BTU Ducted Furnaces 35 | - | - | DEP | - | Standard with LP coach option. |
Aqua-Hot® 450D Heat Exchanger 36 | DEP | DEP | DEP | STD | Replaces ducted furnaces when hydronic heating & electronic appliance equipped coach option is selected. Aqua-Hot® heat exchanger provides both heated air and water. |
Solar Panel Options | |||||
Prep for Solar Panels 37 | OPT | OPT | OPT | OPT | Includes docking ports for aftermarket solar panels. |
(3) 200-Watt Solar Panels with (1) 30-Amp Controller | OPT | OPT | OPT | OPT | |
(6) 200-Watt Solar Panels with (2) 30-Amp Controllers | - | OPT | OPT | OPT | |
Electrical Add On Options | |||||
In-motion Satellite Dish 38 | OPT | OPT | OPT | OPT | High-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network®. |
Prewiring for Winegard® Trav’ler™ Satellite | OPT | OPT | OPT | OPT | |
Internet & Phone | |||||
Prep for Wi-Fi Booster 39 | DEP | DEP | DEP | DEP | Standard unless Starlink Pro is optioned. |
Wi-Fi Booster 40 | OPT | OPT | OPT | OPT | Not combinable with Starlink Pro option. |
Starlink® Pro 41 | OPT | OPT | OPT | OPT | Not combinable with Wi-Fi Booster option. Requires subscription. |
Plumbing | |||||
Plumbing Features | |||||
Aqua View Showermiser™ | STD | STD | STD | STD | |
Water Filter | STD | STD | STD | STD | |
Water Pump Switch Access from Spyder System and Sewer Bay Board | STD | STD | STD | STD | |
Low-point Water Drain Lines | STD | STD | STD | STD | |
Black Holding Tank Flush System | STD | STD | STD | STD | |
Gravity Water Fill | STD | STD | STD | STD | |
Heated Fresh and Holding Tank Compartment via Heat Duct | STD | STD | STD | STD | |
SeeLeveL™ Tank Monitor | STD | STD | STD | STD | |
Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports | STD | STD | STD | STD | |
Exterior Rinse Hose with Shower Head | STD | STD | STD | STD | |
Sewer Bay Hand Sanitizer and Paper Towel Holders | STD | STD | STD | STD | |
Fresh Water Hose with Power Retract Reel | STD | STD | STD | STD | |
Water Heater Options | |||||
Truma AquaGo™ Comfort Instant Water Heater 42 | DEP | DEP | DEP | - | Controllable through the Truma control panel and the Spyder System control panels. Standard with LP coach option. |
Aqua-Hot® 450D Heat Exchanger 43 | DEP | DEP | DEP | STD | Replaces Truma AquaGo™ Comfort instant water heater when hydronic heating & electronic appliance equipped coach option is selected. Aqua-Hot® heat exchanger provides both heated air and water. |
Water Heater Bypass System 44 | DEP | DEP | DEP | - | Standard with LP coach option. Not necessary with hydronic heating & electronic appliance equipped coach option. |
Exterior | |||||
Exterior Features | |||||
Full-body Paint with (4) Layers of Clear Coat | STD | STD | STD | STD | |
Single-colored Slide-out Endwalls | STD | STD | STD | STD | |
High Performance Protective Film on Front Cap and Select Areas | STD | STD | STD | STD | |
Girard® Powered Door Awning with Integrated LED Lighting | STD | STD | STD | STD | |
Girard® Manual Window Awning Package | STD | STD | STD | STD | |
Girard® Slide-out Toppers | STD | STD | STD | STD | |
Side-swinging Exterior Storage Doors with Gas Shocks | STD | STD | STD | STD | |
Lockable Handles on Compartment Doors | STD | STD | STD | STD | |
Motion-sensor Lights in Cargo Bay | STD | STD | STD | STD | |
120-Volt and 12-Volt Outlets Inside Cargo Bays | STD | STD | STD | STD | |
Pass-through Basement Storage | STD | STD | STD | STD | |
Charcoal Carpet Cargo Walls | STD | STD | STD | STD | |
Fiberglass Reinforced Plastic Basement Floor | STD | STD | STD | STD | |
Frameless, Dual-Pane Windows | STD | STD | STD | STD | |
Exterior Patio Light | STD | STD | STD | STD | |
Daytime Running Lights | STD | STD | STD | STD | |
Docking Lights | STD | STD | STD | STD | |
Chrome Power Heated Side-View Mirrors with Integrated Cameras | STD | STD | STD | STD | |
Exterior TV with Soundbar | STD | STD | STD | STD | |
Fast Charge USB ports within Exterior TV Compartment | STD | STD | STD | STD | |
Lightweight Entry Door with Integrated Screen | STD | STD | STD | STD | |
Deadbolt Front Entrance Lock | STD | STD | STD | STD | |
Lighted Entry Door Grab Handle | STD | STD | STD | STD | |
Automatic Stainless Steel Double Entry Step | STD | STD | STD | STD | |
Keyless Entry System for Front Entrance and Component Doors | STD | STD | STD | STD | |
Mud Flaps | STD | STD | STD | STD | |
Custom Rock Guard | STD | STD | STD | STD | |
Exterior Paint Color Options | |||||
Maroon Coral | OPT | OPT | OPT | OPT | |

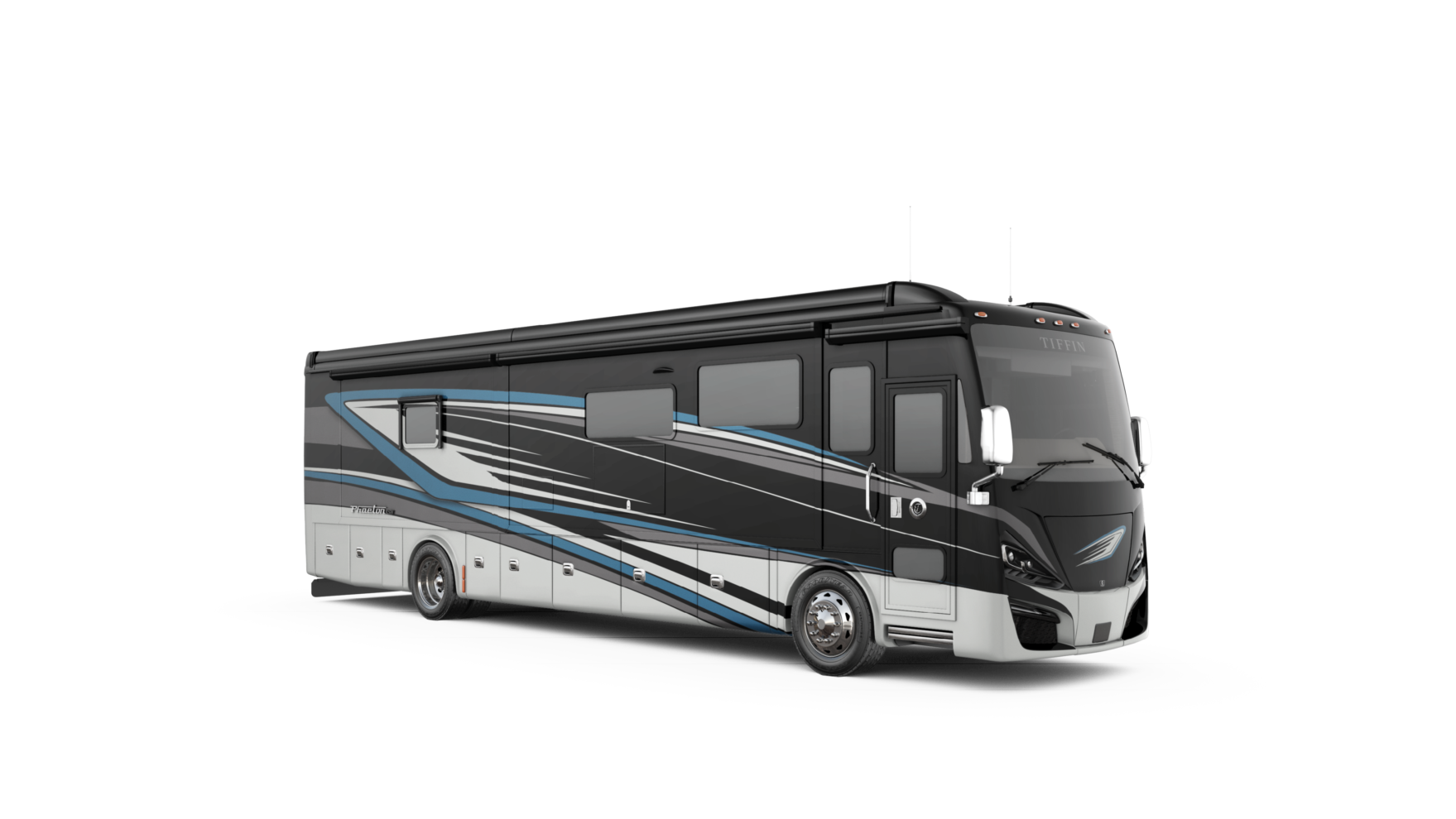

Euro Blue | OPT | OPT | OPT | OPT | |
Fire Opal | OPT | OPT | OPT | OPT | |
Frosted Granite | OPT | OPT | OPT | OPT | |
Nasa | OPT | OPT | OPT | OPT | |
Sunlit Sand | OPT | OPT | OPT | OPT | |
White Mahogany | OPT | OPT | OPT | OPT | |
Midnight | OPT | OPT | OPT | OPT | |
Patio Awning Options | |||||
(1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting | STD | STD | STD | STD | |
(2) Girard® Roof-mounted Powered Patio Awnings with Integrated LED Lighting and Dual Pitch Feature | OPT | OPT | OPT | OPT | |
Slide Tray Options | |||||
(1) Manual Storage Compartment Slide-out Tray 45 | OPT | OPT | OPT | OPT | Trays slide out on both sides of motorhome. |
(2) Manual Storage Compartment Slide-out Trays 46 | - | - | OPT | OPT | Trays slide out on both sides of motorhome. |
Exterior Add On Options | |||||
Outdoor Electric Grill 47 | - | - | DEP(OPT) | DEP(OPT) | Option requires at least (1) storage compartment slide-out tray. |
Lippert™ On-The-Go™ Telescoping Ladder 48 | OPT | OPT | OPT | OPT | All units will ship with a Lippert™ On-The-Go™ Prepped Receiver installed. |
Interior | |||||
Interior Features | |||||
Handcrafted Overhead Cabinetry | STD | STD | STD | STD | |
Solid Surface Step Well | STD | STD | STD | STD | |
Powered Step Well Cover | STD | STD | STD | STD | |
Storage Compartment Within Entry Steps | STD | STD | STD | STD | |
Recessed Step Well Lighting | STD | STD | STD | STD | |
Living Area TV | STD | STD | STD | STD | |
Solid Surface Galley Countertop | STD | STD | STD | STD | |
Treated Carpet in Slide-out Floors | STD | STD | STD | STD | |
Handcrafted Slide-out Fascia | STD | STD | STD | STD | |
Soft Touch Vinyl Ceiling | STD | STD | STD | STD | |
Dimmable LED Lighting | STD | STD | STD | STD | |
Prep for Washer and Dryer | STD | STD | STD | STD | |
Carbon Monoxide Detector | STD | STD | STD | STD | |
LPG Leak Detector | STD | STD | STD | STD | |
Smoke Detector | STD | STD | STD | STD | |
Fire Extinguisher | STD | STD | STD | STD | |
Solar and Privacy Shades | STD | STD | STD | STD | |
Soft-closing Drawers | STD | STD | STD | STD | |
Powered Roof Vents | STD | STD | STD | STD | |
Central Vacuum System with VacPan® Automatic Dustpan | STD | STD | STD | STD | |
Interior Grab Handle at Entry Door | STD | STD | STD | STD | |
Egress Windows Throughout Coach | STD | STD | STD | STD | |
Interior Décor Packages | |||||
Capri | OPT | OPT | OPT | OPT | |
Tide Pool | OPT | OPT | OPT | OPT | |
Stallion | OPT | OPT | OPT | OPT | |
Upholstery Fabrics | |||||
Ultrafabrics® Tottori Tatami Mat 49 | DEP | DEP | DEP | DEP | Always paired with Capri Interior Fabric Suite. |
Ultrafabrics® Tottori Rice Paper 50 | DEP | DEP | DEP | DEP | Always paired with Tide Pool or Stallion Interior Fabric Suites. |
Cabinetry Color | |||||
Shadow | OPT | OPT | OPT | OPT | |
Sandstone | OPT | OPT | OPT | OPT | |
White Linen | OPT | OPT | OPT | OPT | |
Platinum | OPT | OPT | OPT | OPT | |
Black Tuffle | OPT | OPT | OPT | OPT | |
Floor Tiles | |||||
Sweden Alps Glazed Porcelain Tile | OPT | OPT | OPT | OPT | |
Editorial Volakas Glazed Porcelain Tile | OPT | OPT | OPT | OPT | |
Interior Add On Options | |||||
Standalone Living Area Fireplace | OPT | - | - | - | |
Stacked Washer and Dryer | OPT | OPT | OPT | OPT | |
Gold Heat® Dual Zones Heated Tile Floor 51 | OPT | OPT | OPT | OPT | No heated tile in rear bath on 37 BH. |
Driver's Compartment | |||||
Driver's Compartment Features | |||||
Ultrafabrics® Tottori Power Driver and Passenger Seats | STD | STD | STD | STD | |
Dual Driver And Passenger Seat Armrests | STD | STD | STD | STD | |
Swivel Bases for Driver and Passenger Seats | STD | STD | STD | STD | |
Powered Passenger Seat Footrest | STD | STD | STD | STD | |
Integrated Seat Belts on Driver and Passenger Seats | STD | STD | STD | STD | |
Tilt and Telescoping Steering Wheel with Integrated Controls | STD | STD | STD | STD | |
Adjustable Accelerator and Brake Pedals | STD | STD | STD | STD | |
Wraparound Dash with Graphite Accents | STD | STD | STD | STD | |
Mounted Dash Fans | STD | STD | STD | STD | |
Cupholders on Driver and Passenger Side | STD | STD | STD | STD | |
Digital Dash Cluster | STD | STD | STD | STD | |
(1) Center Storage Drawer | STD | STD | STD | STD | |
Generator Start & Stop Rocker Switch | STD | STD | STD | STD | |
USB Dash Receptacles | STD | STD | STD | STD | |
12-Volt Dash Receptacle | STD | STD | STD | STD | |
Backlit Dash Rocker Switches | STD | STD | STD | STD | |
Passenger Console Wireless Phone Charger | STD | STD | STD | STD | |
Driver and Passenger Map Lights | STD | STD | STD | STD | |
One-piece Panoramic Windshield | STD | STD | STD | STD | |
Single-motor Intermittent Windshield Wipers | STD | STD | STD | STD | |
Automatic LED Headlights | STD | STD | STD | STD | |
Side-view Cameras 52 | STD | STD | STD | STD | Integrated within side-view mirrors and activated by turn signals. |
Color Back-up Camera | STD | STD | STD | STD | |
10" High Definition LED Multichannel Camera Monitor | STD | STD | STD | STD | |
Stereo with AM & FM Radio, CD Player, and Satellite Radio 53 | STD | STD | STD | STD | Subscription required for satellite radio. |
Ceiling Mounted Speakers | STD | STD | STD | STD | |
Overhead Cabinetry with Wooden Panel Doors | STD | STD | STD | STD | |
Auxiliary Start Switch | STD | STD | STD | STD | |
Concealed Air Horn | STD | STD | STD | STD | |
Manual Opening Driver Side Window | STD | STD | STD | STD | |
Solid, Non-opening Passenger Side Window | STD | STD | STD | STD | |
Powered Solar and Privacy Windshield Shade | STD | STD | STD | STD | |
Manual Solar and Privacy Shades on Side Windows | STD | STD | STD | STD | |
Driver's Compartment Add On Options | |||||
Blind Spot Monitoring System | OPT | OPT | OPT | OPT | |
In-dash Navigation System | OPT | OPT | OPT | OPT | |
Front Overhead TV | OPT | OPT | OPT | OPT | |
Electric Front Overhead Drop-Down Bunk 54 | OPT | OPT | OPT | OPT | Mattress measures 72" x 30". Decreases overhead storage capacity. Maximum weight limit of drop-down bunk is 250 pounds. Now includes telescoping ladder. |
Dinette and Living Area | |||||
Driver Side Dinette | |||||
75" Booth Dinette-Sleeper 55 | - | STD | - | - | Piece of furniture converts to 72" x 45" sleeping area. |
75" U-shaped Dinette | - | OPT | - | - | |
75" Dinette with Chairs 56 | - | OPT | - | - | Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. |
Driver Side Furniture | |||||
74" Air Coil Sofa Bed 57 | STD | STD | STD | - | Mattress measures 72" x 52" and includes internal pump. Cannot option air coil sofa on both driver and passenger sides. |
74" Theater Seating | OPT | OPT | OPT | - | |
89" Air Coil Sofa Bed 58 | - | - | - | STD | Mattress measures 72" x 59" and includes internal pump. Cannot option air coil sofa on both driver and passenger sides. |
89" Theater Seating | - | - | - | OPT | |
Passenger Side Dinette | |||||
75" Dinette with Chairs and Lift TV 59 | STD | - | - | - | Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. Lift TV deletes cabinetry over dinette. |
75" Dinette Bar with Lift TV 60 | OPT | - | - | - | Includes (2) freestanding accent chairs and (2) wooden folding chairs. Lift TV deletes cabinetry over dinette. |
72" Booth Dinette-Sleeper 61 | - | - | STD | - | Piece of furniture converts to 69" x 45" sleeping area. |
72" Dinette with Chairs 62 | - | - | OPT | - | Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. |
72" U-shaped Dinette | - | - | OPT | - | |
75" Booth Dinette-Sleeper 63 | - | - | - | STD | Piece of furniture converts to 72" x 45" sleeping area. |
75" U-shaped Dinette | - | - | - | OPT | |
75" Dinette with Chairs 64 | - | - | - | OPT | Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. |
Passenger Side Furniture | |||||
64" DE Sofa Bed with Lift TV 65 | - | STD | - | - | Piece of furniture converts to 57" x 49" sleeping area. Lift TV deletes cabinetry over furniture. |
68" DE Sofa Bed with Lift TV 66 | - | - | STD | - | Piece of furniture converts to 61" x 49" sleeping area. Lift TV deletes cabinetry over furniture. |
68" Air Coil Sofa Bed with Lift TV 67 | - | - | OPT | - | Mattress measures 72" x 52" and includes internal pump. Cannot option air coil sofa on both driver and passenger sides. Lift TV deletes cabinetry over furniture. |
84" DE Sofa Bed with Lift TV 68 | - | - | - | STD | Piece of furniture converts to 77" x 49" sleeping area. Lift TV deletes cabinetry over furniture. |
84" Air Coil Sofa Bed with Lift TV 69 | - | - | - | OPT | Mattress measures 72" x 59" and includes internal pump. Cannot option air coil sofa on both driver and passenger sides. Lift TV deletes cabinetry over furniture. |
Recliner and Lift TV 70 | - | OPT | OPT | OPT | Lift TV deletes cabinetry over furniture. |
Recliner and Lift TV with Fireplace 71 | - | OPT | OPT | OPT | Lift TV deletes cabinetry over furniture. |
Kitchen | |||||
Kitchen Features | |||||
1.7-Cubic Foot Smart Convection Microwave with Air Fry | STD | STD | STD | STD | |
Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer | STD | STD | STD | STD | |
Built-in Soap Dispenser | STD | STD | STD | STD | |
Galley Overhead Cabinets with Pull-out Drawers | STD | STD | STD | STD | |
Panoramic Galley Window | STD | STD | STD | STD | |
Task Lighting | STD | STD | STD | STD | |
Toe Kick Lighting | STD | STD | STD | STD | |
Full Tile Backsplash | STD | STD | STD | STD | |
Solid Surface Galley Countertop, Sink, and Cooktop Cover | STD | STD | STD | STD | |
Refrigerator Options | |||||
22-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer 72 | STD | - | - | - | Refrigerator volume is approximated. |
25-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer 73 | - | STD | STD | STD | Refrigerator volume is approximated. |
Cooking Appliance Options | |||||
Three-Burner Liquid Propane Cooktop 74 | DEP | DEP | DEP | - | Standard with LP coach option. Not available with hydronic heating & electronic appliance equipped coach option. |
Two-Burner Induction Cooktop 75 | DEP | DEP | DEP | STD | Replaces three-burner liquid propane cooktop when hydronic heating & electronic appliance equipped coach option is selected. |
Kitchen Add On Options | |||||
Drawer-style Dishwasher | OPT | OPT | OPT | OPT | |
Manual Release Expand-An-Island | - | STD | STD | STD | |
Bedroom | |||||
Bedroom Features | |||||
Under Bed Storage | STD | STD | STD | STD | |
Bedside Windows | STD | STD | STD | STD | |
Overhead Cabinets with Headboard | STD | STD | STD | STD | |
Bed Comforter with Throw Pillows | STD | STD | STD | STD | |
Handcrafted Privacy Door | STD | STD | STD | STD | |
LED Reading Lights | STD | STD | STD | STD | |
Nightstand with Solid Surface Tops | STD | STD | STD | STD | |
Mounted Bedroom TV | STD | STD | STD | STD | |
Centralized Entertainment Center 76 | STD | STD | STD | STD | Houses Blu-ray™ player, satellite receiver, and cable TV hook-up. |
Ceiling Fan | STD | STD | STD | STD | |
Laundry Hamper | STD | STD | STD | STD | |
Mattress Options | |||||
Memory Foam King Mattress (72" x 80") with Power Smart Lift | STD | - | - | - | |
Memory Foam Queen Mattress (60" x 80") with Power Smart Lift | OPT | - | - | - | |
Memory Foam King Mattress (72" x 80") | - | STD | STD | STD | |
Memory Foam Queen Mattress (60" x 80") | - | OPT | OPT | OPT | |
Bedroom Storage Options | |||||
Floor-to-ceiling Closet Space | STD | - | STD | - | |
Wardrobe with Drawers Underneath | - | STD | - | - | |
Walk-in Closet | - | - | - | STD | |
Bedroom Add On Options | |||||
Safe | OPT | OPT | OPT | OPT | |
Bedroom Egress Door | OPT | OPT | OPT | OPT | |
Bathroom | |||||
Bathroom Features | |||||
Solid Surface Lavatory Top | STD | STD | STD | STD | |
Handheld Shower Head with Slide Bar | STD | STD | STD | STD | |
Shower Skylight | STD | STD | STD | STD | |
Shower LED Light with Sliding Cover | STD | STD | STD | STD | |
Towel and Toilet Paper Holders | STD | STD | STD | STD | |
Roof Vent Fan | STD | STD | STD | STD | |
Base Cabinet | STD | STD | STD | STD | |
Number of Bathrooms | |||||
(1) Bathroom | STD | - | - | - | |
(1) Bathroom and (1) Half-bath 77 | - | STD | STD | STD | All half-baths contain a toilet and a solid surface countertop with a single porcelain sink. |
Master Bathroom Sink | |||||
(1) Porcelain Master Bathroom Sink | - | STD | - | - | |
(2) Porcelain Master Bathroom Sinks | STD | - | STD | STD | |
Shower | |||||
One-Piece Molded Fiberglass Shower (31.75" x 40") | STD | - | STD | STD | |
One-Piece Molded Fiberglass Shower (28.5" x 40.5") | - | STD | - | - | |
Toilet | |||||
(1) Macerator Toilet | STD | - | - | - | |
(1) Gravity Flush Toilet and (1) Macerator Toilet | - | STD | STD | STD | |
Master Bathroom Medicine Cabinet | |||||
Medicine Cabinet with Tri-view Vanity Mirror | STD | - | STD | STD | |
Mirrored Medicine Cabinet | - | STD | - | - |
