Allegro Breeze Specifications
Close Specs

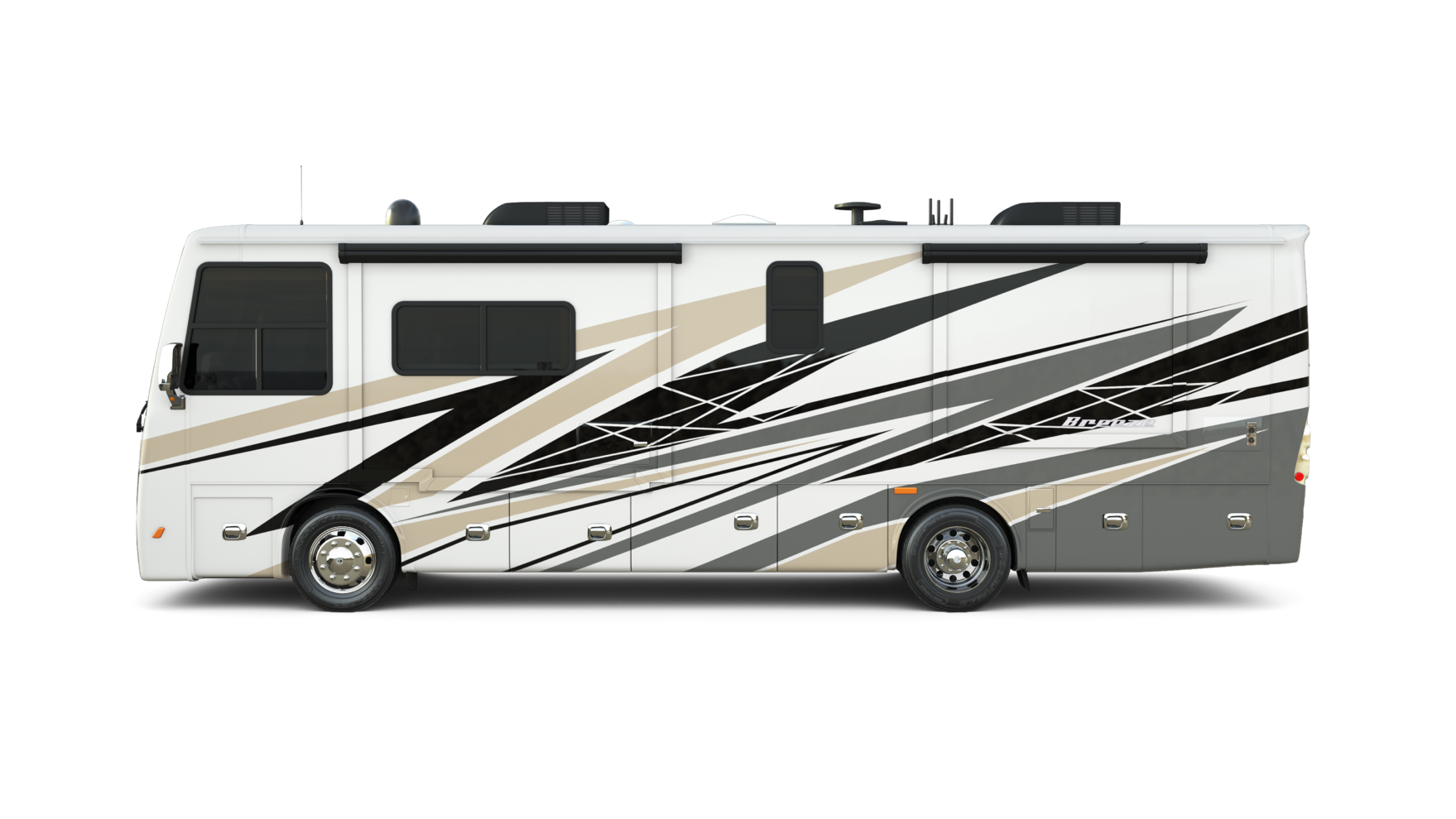

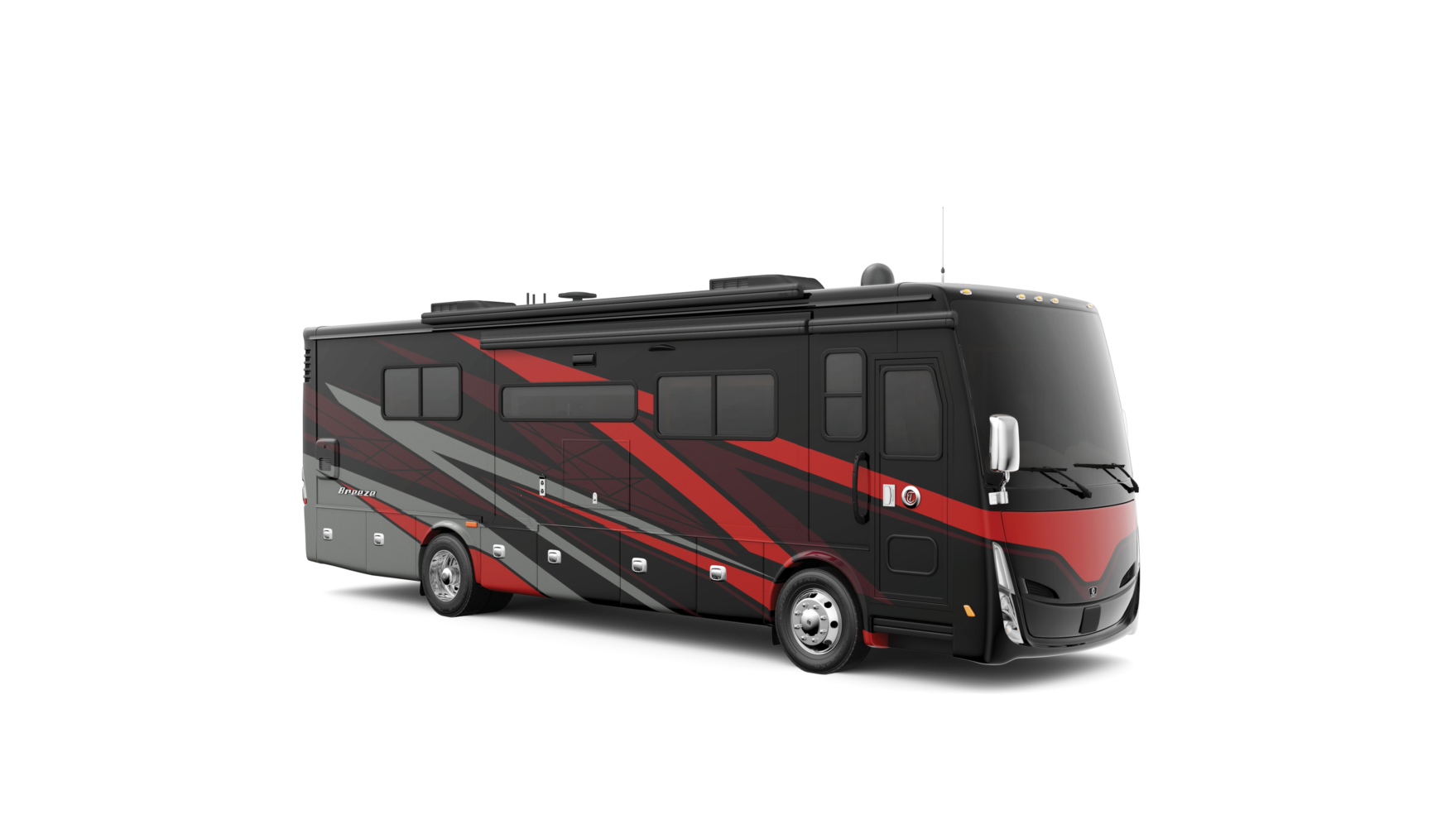

Allegro Breeze
Select multiple floor plans to compare.
| 33 BR | Allegro Breeze footnotes | |||
| Weights and Measures | ||||
| Dimensions | ||||
| Overall Length (approx.) 1 | 33' 2" | The approximated coach width and length does not include side-view mirrors or ladders. | ||
| Wheel Base | 202" | |||
| Overall Width 2 | 95" | The approximated coach width and length does not include side-view mirrors or ladders. | ||
| Overall Height | 11' 8" | |||
| Minimum Garage Height | 12' | |||
| Interior Height | 78" | |||
| Interior Width | 90" | |||
| Square Footage (approx.) 3 | 295 | Square footage was calculated with the slide-outs fully extended. | ||
| Basement Storage (cubic feet, approx.) | 94 | |||
| Weight Limits | ||||
| GAWR-Front (pounds) | 9500 | |||
| GAWR-Rear (pounds) | 16000 | |||
| GVWR (pounds) | 25500 | |||
| Maximum Trailer Weight (pounds) 4 | 5000 | Maximum trailer weight is dependent on the loading and towing variables which include the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. | ||
| Hitch Rating (pounds) | 5000 | |||
| GCWR (pounds) | 30500 | |||
| Capacities | ||||
| Fuel Tank (gallons) | 70 | |||
| DEF Tank (gallons) 5 | 10 | Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards. | ||
| Fresh Water (gallons) | 70 | |||
| Grey Water (gallons) | 50 | |||
| Black Water (gallons) | 33 | |||
| LPG Tank (gallons) 6 | 20 | LPG tank can only be filled to 80% capacity. | ||
| Quantities | ||||
| Number of Slideouts | 3 | |||
| Sleeping Capacity 7 | 3 to 4 | Dependent on furniture and dinette options. | ||
| Sleeping Areas 8 | 2 to 3 | Dependent on furniture and dinette options. | ||
| Seat Belts 9 | 4 to 6 | Dependent on furniture and dinette options. | ||
| Seating Capacity 10 | 6 to 8 | Dependent on furniture and dinette options. | ||
| Chassis and Drivetrain | ||||
| Chassis and Drivetrain Features | ||||
| PowerGlide® Raised Rail Rear Engine Diesel Chassis | STD | |||
| Cummins® B6.7 340 HP Diesel Engine with 700 lb-ft Torque 11 | STD | Peak horsepower achieved at 2,600 RPM. Peak torque achieved at 1,600 RPM. | ||
| Two-wheel Drive | STD | |||
| 130-Amp Alternator | STD | |||
| Allison® 2500 MH 6-speed Automatic Transmission with Lock-up Torque Converter | STD | |||
| Aluminum Wheels | STD | |||
| Front and Rear 265/70R 19.5 Tires | STD | |||
| (2) 12-Volt Flooded Lead-Acid Chassis Batteries | STD | |||
| Valid™ Air Leveling System | STD | |||
| Integrated Leveling Controls Through Valid™ Instrument Cluster | STD | |||
| ZF Independent Front Suspension | STD | |||
| Reyco® Granning® Air Ride Rear Suspension | STD | |||
| Custom Tuned Koni Shock Absorbers | STD | |||
| Rear Radiator | STD | |||
| Front Disc Brakes and Rear Drum Brakes | STD | |||
| Full Air Brake System with Automatic Slack Adjusters | STD | |||
| Single Stage Variable Geometry Turbocharger (VGT) Engine Brake | STD | |||
| Manual Parking Brake | STD | |||
| Driver and Passenger Side Fuel Fill | STD | |||
| Tire Pressure Monitoring | STD | |||
| Adaptive Cruise Control | STD | |||
| Automatic Traction Control | STD | |||
| Collision Mitigation with Forward Warning and Active Braking | STD | |||
| Electronic Stability Control | STD | |||
| Construction | ||||
| Construction Features | ||||
| Seamless One-piece Gel-coat Fiberglass Molded Roof Cap | STD | |||
| 5 1/4" Formed Roof Insulation | STD | |||
| Tubular Aluminum Roof Skeleton Frames | STD | |||
| Extraordinaire™ Ducted Air Cooling System | STD | |||
| One-piece Molded Gel-coat Fiberglass Front and Rear Caps | STD | |||
| Crane® Composites Noble® Select All-Composite Exterior Sidewalls | STD | |||
| Tubular Aluminum Wall Skeleton Frames | STD | |||
| High-performance Thermal Insulation in Sidewalls | STD | |||
| Aluminum Floor Skeleton | STD | |||
| Engineered Wood Sub-flooring | STD | |||
| 1 1/2" Thick Thermal Insulation in Floor | STD | |||
| Steel Basement Construction | STD | |||
| Rust Protective Undercoating | STD | |||
| Hydraulic Slide-out Mechanisms | STD | |||
| Electrical | ||||
| Electrical Features | ||||
| Liquid Propane (LP) Coach 12 | STD | Propane is used to power the ducted furnaces, the water heater, and the liquid propane cooktop. | ||
| Spyder Controls Multiplex System | STD | |||
| Firefly Integrations Mira Module 13 | STD | Download the accompanying Vegatouch app to control your coach locally within Bluetooth range. | ||
| Centralized 7.5” Spyder System Main Monitor | STD | |||
| Interior Entryway Spyder System Color Touchscreen | STD | |||
| Additional Spyder Color Touchscreens Throughout Coach | STD | |||
| 6.0-Kilowatt Onan® Quiet Diesel Generator | STD | |||
| 2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control 14 | STD | Automatic generator start capabilities controlled through Spyder Controls Multiplex System. | ||
| Battery Slide-out Tray | STD | |||
| (2) 30,000-BTU Ducted Furnaces | STD | |||
| 50-Amp Shore Power | STD | |||
| Auxiliary Solar Port | STD | |||
| HD Over-the-air Antenna | STD | |||
| Park Cable and Ground Satellite Hook-up | STD | |||
| Prep for In-motion Satellite | STD | |||
| Blu-ray™ Player | STD | |||
| Satellite Receiver 15 | STD | Requires subscription. | ||
| Prep for Wi-Fi Booster | STD | |||
| 12-Volt Breaker Panel | STD | |||
| 12-Volt Disconnect Switch | STD | |||
| Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter | STD | |||
| Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay | STD | |||
| 110-Volt Exterior Receptacle | STD | |||
| Surge Guard® Transfer Switch | STD | |||
| USB Receptacles Throughout Coach | STD | |||
| House Batteries | ||||
| (4) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries | STD | |||
| (4) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries | OPT | |||
| Air Conditioning | ||||
| (2) 13,500-BTU Low Profile Air Conditioners with Condensation Drains | STD | |||
| (1) 13,500-BTU Low Profile Air Conditioner and (1) 15,000-BTU Low Profile Air Conditioner with Heat Pump, both with Condensation Drains 16 | OPT | 15,000-BTU air conditioner replaces front 13,500-BTU air conditioner. | ||
| Solar Panels | ||||
| Prep for Solar Panels 17 | OPT | Includes docking ports for aftermarket solar panels. | ||
| (1) 200-Watt Solar Panel with (1) 30-Amp Controller | OPT | |||
| (3) 200-Watt Solar Panels with (1) 30-Amp Controller | OPT | |||
| In-motion Satellite Dish 18 | OPT | High-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network®. | ||
| Wi-Fi Booster | OPT | |||
| Plumbing | ||||
| Plumbing Features | ||||
| Truma AquaGo™ Comfort Instant Water Heater 19 | STD | Controllable through the Truma control panel and the Spyder System control panels. | ||
| Water Heater Bypass System | STD | |||
| Aqua View Showermiser™ | STD | |||
| Water Filter | STD | |||
| Water Pump Switch Access from Spyder System and Sewer Bay Board | STD | |||
| Low-point Water Drain Lines | STD | |||
| Black Holding Tank Flush System | STD | |||
| Gravity Water Fill | STD | |||
| Heated Fresh and Holding Tank Compartment via Heat Duct | STD | |||
| Tank Level Monitor System | STD | |||
| Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports | STD | |||
| Exterior Rinse Hose with Shower Head | STD | |||
| Sewer Bay Hand Sanitizer and Paper Towel Holders | STD | |||
| Exterior | ||||
| Exterior Features | ||||
| Full-body Paint with (3) Layers of Clear Coat | STD | |||
| Single-colored Slide-out Endwalls | STD | |||
| High Performance Protective Film on Front Cap and Select Areas | STD | |||
| (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting | STD | |||
| Girard® Powered Door Awning with Integrated LED Lighting | STD | |||
| Girard® Slide-out Toppers | STD | |||
| Side-swinging Exterior Storage Doors with Gas Shocks | STD | |||
| Lockable Handles on Compartment Doors | STD | |||
| Motion-sensor Lights in Cargo Bay | STD | |||
| 120-Volt and 12-Volt Outlets Inside Cargo Bays | STD | |||
| Charcoal Carpet Cargo Walls | STD | |||
| Fiberglass Reinforced Plastic Basement Floor | STD | |||
| Frameless, Single-Pane Windows | STD | |||
| Exterior Patio Light | STD | |||
| Fog Lights | STD | |||
| Daytime Running Lights | STD | |||
| Docking Lights | STD | |||
| Chrome Power Heated Side-View Mirrors with Integrated Cameras | STD | |||
| Exterior TV with Soundbar | STD | |||
| Fast Charge USB ports within Exterior TV Compartment | STD | |||
| Lightweight Entry Door with Integrated Screen | STD | |||
| Entry Door Grab Handle | STD | |||
| Deadbolt Front Entrance Lock | STD | |||
| Automatic Double Entry Step | STD | |||
| Front Door Entry System via Key Fob 20 | STD | Entry system does not include exterior Spyder keypad. | ||
| Mud Flaps | STD | |||
| Exterior Add On Options | ||||
| Lippert™ On-The-Go™ Telescoping Ladder 21 | OPT | All units will ship with a Lippert™ On-The-Go™ Prepped Receiver installed. | ||
| Interior | ||||
| Interior Features | ||||
| Handcrafted Overhead Cabinetry | STD | |||
| Carpeted Step Well with Composite Steps | STD | |||
| Manual Step Well Cover | STD | |||
| Living Area TV | STD | |||
| Solid Surface Galley Countertop | STD | |||
| Tile Slide-out Floors | STD | |||
| Handcrafted Slide-out Fascia | STD | |||
| Soft Touch Vinyl Ceiling | STD | |||
| Dimmable LED Lighting | STD | |||
| Prep for Washer and Dryer | STD | |||
| Carbon Monoxide Detector | STD | |||
| LPG Leak Detector | STD | |||
| Smoke Detector | STD | |||
| Fire Extinguisher | STD | |||
| Solar and Privacy Shades | STD | |||
| Soft-closing Drawers | STD | |||
| Powered Roof Vents | STD | |||
| Interior Grab Handle at Entry Door | STD | |||
| Egress Windows Throughout Coach | STD | |||
| Interior Décor Packages | ||||
| Waypoint | STD | |||
| Upholstery Fabrics | ||||
| Ultrafabrics® Montage Alpaca | OPT | |||
| Ultrafabrics® Montage Landscape | OPT | |||
| Cabinetry Color | ||||
| Shadow 22 | OPT | Lambrequins will match cabinet stain color. | ||
| Sandstone 23 | OPT | Lambrequins will match cabinet stain color. | ||
| Floor Tiles | ||||
| Sea Grass Luxury Vinyl Tile | OPT | |||
| Monteano Luxury Vinyl Tile | OPT | |||
| Interior Add On Options | ||||
| Standalone Living Area Fireplace | OPT | |||
| Combo Washer-Dryer | OPT | |||
| Central Vacuum System | OPT | |||
| Driver's Compartment | ||||
| Driver's Compartment Features | ||||
| Ultrafabrics® Montage Power Driver and Passenger Seats | STD | |||
| Dual Driver And Passenger Seat Armrests | STD | |||
| Swivel Bases for Driver and Passenger Seats | STD | |||
| Adjustable Seatbelt Brackets | STD | |||
| Powered Passenger Seat Footrest | STD | |||
| Tilt and Telescoping Steering Wheel with Integrated Controls | STD | |||
| Adjustable Accelerator and Brake Pedals | STD | |||
| Ergonomic Dash with Carbon Fiber Accents | STD | |||
| Mounted Dash Fans | STD | |||
| Cupholders on Driver and Passenger Side | STD | |||
| Valid™ Liquid Crystal Display Instrument Cluster with Integrated Leveling Controls | STD | |||
| (1) Center Storage Drawer | STD | |||
| (2) Center Storage Drawers | STD | |||
| Generator Start & Stop Rocker Switch | STD | |||
| USB Dash Receptacles | STD | |||
| 12-Volt Dash Receptacle | STD | |||
| Backlit Dash Rocker Switches | STD | |||
| Passenger Console Controls for Map Light and Fan | STD | |||
| Driver and Passenger Map Lights | STD | |||
| One-piece Panoramic Windshield | STD | |||
| Single-motor Intermittent Windshield Wipers | STD | |||
| Automatic LED Headlights | STD | |||
| Side-view Cameras 24 | STD | Integrated within side-view mirrors and activated by turn signals. | ||
| Color Back-up Camera | STD | |||
| 7" High Definition LED Multichannel Monitor for Side-view and Back-up Cameras | STD | |||
| Stereo with AM & FM Radio, CD Player, and Satellite Radio 25 | STD | Subscription required for satellite radio. | ||
| Ceiling Mounted Speakers | STD | |||
| Overhead Cabinetry with Wooden Panel Doors | STD | |||
| Auxiliary Start Switch | STD | |||
| Concealed Air Horn | STD | |||
| Manual Opening Driver Side Window | STD | |||
| Solid, Non-opening Passenger Side Window | STD | |||
| Powered Solar and Privacy Windshield Shade | STD | |||
| Manual Solar and Privacy Shades on Side Windows | STD | |||
| Driver's Compartment Add On Options | ||||
| In-dash Navigation System | OPT | |||
| Front Overhead TV | OPT | |||
| Dinette and Living Area | ||||
| Driver Side Furniture | ||||
| 67" Air Coil Sofa Bed 26 | STD | Mattress measures 72" x 52" and includes internal pump. | ||
| Passenger Side Dinette | ||||
| 72" Booth Dinette-Sleeper 27 | STD | Piece of furniture converts to 69" x 45" sleeping area. | ||
| 72" Dinette with Chairs with Lift TV 28 | OPT | Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs. Lift TV deletes cabinetry over dinette. | ||
| Kitchen | ||||
| Kitchen Features | ||||
| 12-Cubic Foot Stainless Steel Residential Refrigerator with Top Freezer 29 | STD | Refrigerator volume is approximated. | ||
| 1.1-Cubic Foot Convection Microwave Oven | STD | |||
| Three-Burner Liquid Propane Cooktop | STD | |||
| Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer | STD | |||
| Galley Overhead Cabinets | STD | |||
| Panoramic Galley Window | STD | |||
| Task Lighting | STD | |||
| Full Tile Backsplash | STD | |||
| Solid Surface Galley Countertop, Sink, and Cooktop Cover | STD | |||
| Bedroom | ||||
| Bedroom Features | ||||
| Under Bed Storage | STD | |||
| Bedside Windows | STD | |||
| Bed Comforter with Throw Pillows | STD | |||
| Handcrafted Privacy Door | STD | |||
| LED Reading Lights | STD | |||
| Nightstand with Hardwood Finished Top | STD | |||
| Mounted Bedroom TV | STD | |||
| Centralized Entertainment Center 30 | STD | Houses Blu-ray™ player, satellite receiver, and cable TV hook-up. | ||
| Floor-to-ceiling Closet Space | STD | |||
| Mattress | ||||
| Memory Foam King Mattress (72" x 80") | STD | |||
| Memory Foam Queen Mattress (60" x 80") | OPT | |||
| Bed Slide | ||||
| Overhead Cabinets with Headboard | STD | |||
| Window at Head of Bed 31 | OPT | Window option removes overhead cabinets. | ||
| Bathroom | ||||
| Bathroom Features | ||||
| (1) Bathroom | STD | |||
| (1) Porcelain Master Bathroom Sink | STD | |||
| Solid Surface Lavatory Top | STD | |||
| One-Piece Molded Fiberglass Shower (28.5" x 40.5") | STD | |||
| Handheld Shower Head with Slide Bar | STD | |||
| Shower Skylight | STD | |||
| (1) Gravity Flush Toilet | STD | |||
| Towel and Toilet Paper Holders | STD | |||
| Mirrored Medicine Cabinet | STD | |||
| Roof Vent Fan | STD | |||
| Base Cabinet | STD |
