Allegro RED Specifications

Close Specs

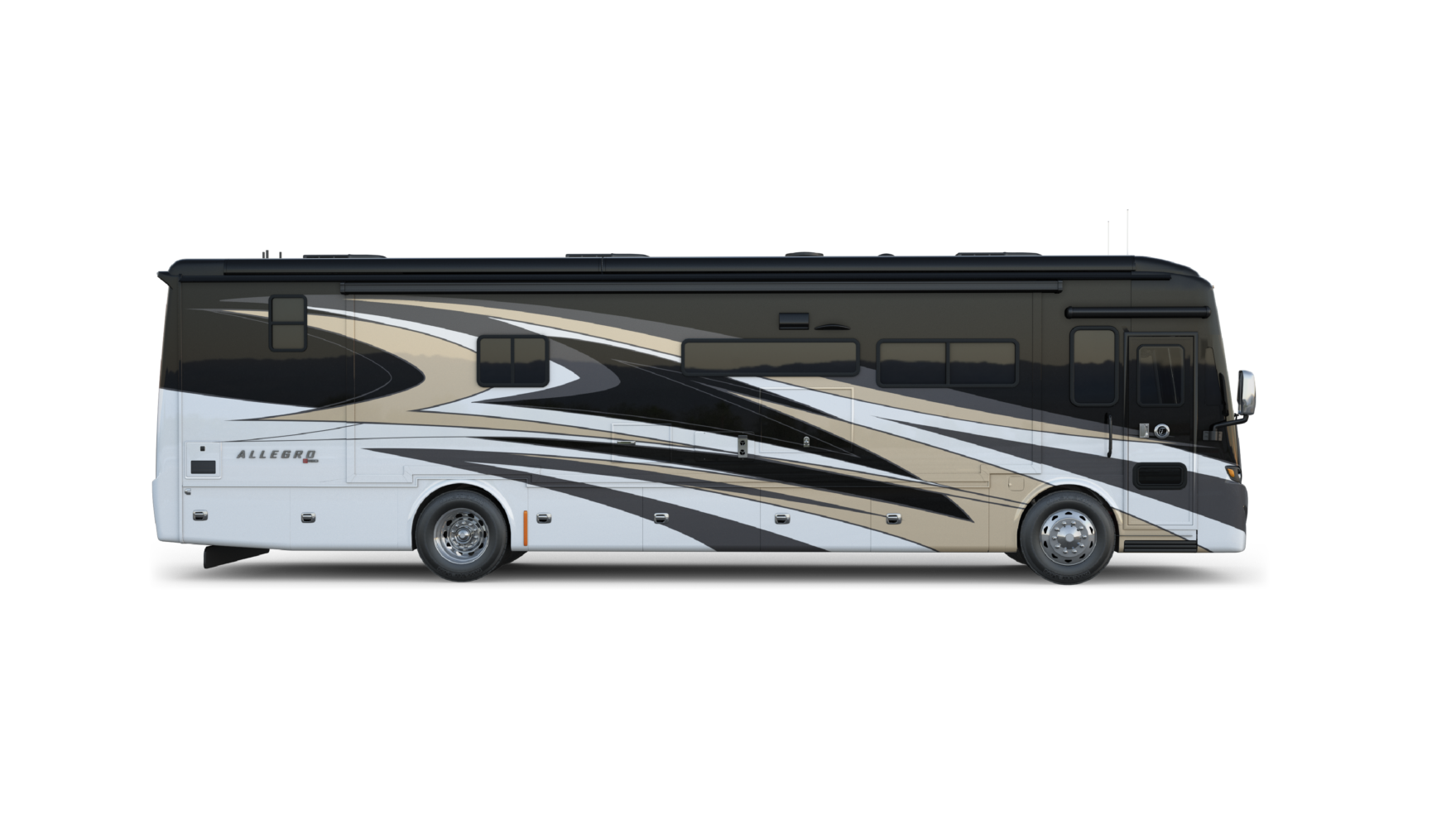

Allegro RED

Select multiple floor plans to compare.

33 AA37 BA38 KAAllegro RED footnotes
Weights and Measures
Dimensions
Overall Length (approx.) 135' 2"38' 6"39' 6"The approximated coach width and length does not include side-view mirrors or ladders.
Wheel Base198"234"252"
Overall Width 2101"101"101"The approximated coach width and length does not include side-view mirrors or ladders.
Overall Height12' 10"12' 10"12' 10"
Minimum Garage Height14'14'14'
Interior Height84"84"84"
Interior Width96"96"96"
Square Footage (approx.) 3335375390Square footage was calculated with the slide-outs fully extended.
Basement Storage (cubic feet, approx.)84119119
Weight Limits
GAWR-Front (pounds)143201432014320
GAWR-Rear (pounds)230002300023000
GVWR (pounds)373203732037320
Maximum Trailer Weight (pounds) 4100001000010000Maximum trailer weight is dependent on the loading and towing variables which include the GVWR, GAWR, and GCWR, as well as adequate trailer brakes.
Hitch Rating (pounds)100001000010000
GCWR (pounds)473204732047320
Capacities
Fuel Tank (gallons)100100100
DEF Tank (gallons) 5131313Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards.
Fresh Water (gallons)909090
Grey Water (gallons)707070
Black Water (gallons)505050
LPG Tank (gallons) 6363636LPG tank can only be filled to 80% capacity.
Quantities
Number of Slideouts333
Sleeping Capacity 74 to 62 to 64 to 8Dependent on furniture and dinette options.
Sleeping Areas 82 to 41 to 53 to 6Dependent on furniture and dinette options.
Seat Belts 95 to 74 to 84 to 7Dependent on furniture and dinette options.
Seating Capacity 107 to 107 to 106 to 9Dependent on furniture and dinette options.
Chassis and Drivetrain
Chassis and Drivetrain Features
Freightliner® XCM Modular Rail Rear Engine Diesel ChassisSTDSTDSTD
Cummins® L9 380 HP Diesel Engine with 1,150 lb-ft Torque 11STDSTDSTDPeak horsepower achieved at 2,200 RPM. Peak torque achieved at 1,200 RPM. Cummins® B6.7 360 HP Diesel Engine is no longer available.
Two-wheel DriveSTDSTDSTD
160-Amp AlternatorSTDSTDSTD
Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque ConverterSTDSTDSTD
Aluminum WheelsSTDSTDSTD
Front and Rear 275/80R 22.5 TiresSTDSTDSTD
(2) 12-Volt Flooded Lead-Acid Chassis BatteriesSTDSTDSTD
Hydraulic Leveling Jacks with Control PanelSTDSTDSTD
Freightliner® V-Series VFS I-beam Front SuspensionSTDSTDSTD
Freightliner® V-Series V-Ride Rear SuspensionSTDSTDSTD
Custom Tuned Sachs® Shock AbsorbersSTDSTDSTD
Rear RadiatorSTDSTDSTD
Front Disc Brakes and Rear Drum BrakesSTDSTDSTD
Full Air Brake System with Automatic Slack AdjustersSTDSTDSTD
Single Stage Variable Geometry Turbocharger (VGT) Engine BrakeSTDSTDSTD
Manual Parking BrakeSTDSTDSTD
Driver and Passenger Side Fuel FillSTDSTDSTD
Tire Pressure MonitoringSTDSTDSTD
Adaptive Cruise ControlSTDSTDSTD
Automatic Traction ControlSTDSTDSTD
Collision Mitigation with Forward Warning and Active BrakingSTDSTDSTD
Electronic Stability ControlSTDSTDSTD
Construction
Construction Features
Seamless One-piece Gel-coat Fiberglass Molded Roof CapSTDSTDSTD
5 1/4" Formed Roof InsulationSTDSTDSTD
Tubular Aluminum Roof Skeleton FramesSTDSTDSTD
Extraordinaire™ Ducted Air Cooling SystemSTDSTDSTD
One-piece Molded Gel-coat Fiberglass Front and Rear CapsSTDSTDSTD
Steel Cockpit Overhead Support FrameSTDSTDSTD
Crane® Composites Noble® Select All-Composite Exterior SidewallsSTDSTDSTD
Tubular Aluminum Wall Skeleton FramesSTDSTDSTD
High-performance Thermal Insulation in SidewallsSTDSTDSTD
Steel Floor SkeletonSTDSTDSTD
Engineered Wood Sub-flooringSTDSTDSTD
1 1/2" Thick Thermal Insulation in FloorSTDSTDSTD
Steel Basement ConstructionSTDSTDSTD
Rust Protective UndercoatingSTDSTDSTD
Slide-out Mechanisms
Combination Hydraulic and Electric Slide-out Mechanisms 12STD--The 33 AA's vanity slide features a electrically powered rack and pinion system.
Hydraulic Slide-out Mechanisms-STDSTD
Electrical
Electrical Features
Spyder Controls Multiplex SystemSTDSTDSTD
Firefly Integrations Mira Module 13STDSTDSTDDownload the accompanying Vegatouch app to control your coach locally within Bluetooth range.
Centralized 7.5” Spyder System Main MonitorSTDSTDSTD
Interior Entryway Spyder System Color TouchscreenSTDSTDSTD
Additional Spyder Color Touchscreens Throughout CoachSTDSTDSTD
8.0-Kilowatt Onan® Quiet Diesel GeneratorSTDSTDSTD
Generator Slide TraySTDSTDSTD
2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control 14STDSTDSTDAutomatic generator start capabilities controlled through Spyder Controls Multiplex System.
Battery Slide-out TraySTDSTDSTD
50-Amp Shore PowerSTDSTDSTD
Auxiliary Solar PortSTDSTDSTD
HD Over-the-air AntennaSTDSTDSTD
Park Cable and Ground Satellite Hook-upSTDSTDSTD
Prep for In-motion SatelliteSTDSTDSTD
Blu-ray™ PlayerSTDSTDSTD
Satellite Receiver 15STDSTDSTDRequires subscription.
12-Volt Breaker PanelSTDSTDSTD
12-Volt Disconnect SwitchSTDSTDSTD
Rotary Disconnect Switches for House Batteries, Chassis Batteries, and InverterSTDSTDSTD
Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer BaySTDSTDSTD
110-Volt Exterior ReceptacleSTDSTDSTD
Surge Guard® Transfer SwitchSTDSTDSTD
USB Receptacles Throughout CoachSTDSTDSTD
Heating and Cooktop Power Source
Liquid Propane (LP) Coach 16STDSTDSTDPropane is used to power the ducted furnaces, the water heater, and the liquid propane cooktop.
Hydronic Heating & Electronic Appliance Equipped Coach 17OPTOPTOPTReplaces the ducted furnaces, the Truma AquaGo™ water heater, and the liquid propane cooktop with an Aqua-Hot® heat exchanger and induction cooktops. Removes LPG tank. Formerly known as "All-Electric Coach".
House Batteries
(6) 6-Volt, 230-Amp Hours Flooded Lead-Acid House BatteriesSTDSTDSTD
(6) 6-Volt, 210-Amp Hours Extended Cycle AGM House BatteriesOPTOPTOPT
Air Conditioning
(2) 15,000-BTU Air Conditioners with Heat PumpsSTDSTDSTD
(2) 15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation DrainsOPTOPTOPT
Space Heating
(1) 35,000-BTU and (1) 30,000-BTU Ducted Furnaces 18DEP--Standard with LP coach option.
(1) 30,000-BTU and (1) 20,000-BTU Ducted Furnaces 19-DEP-Standard with LP coach option.
(2) 30,000-BTU Ducted Furnaces 20--DEPStandard with LP coach option.
Aqua-Hot® 250D Heat Exchanger 21DEPDEPDEPReplaces ducted furnaces when hydronic heating & electronic appliance equipped coach option is selected. Aqua-Hot® heat exchanger provides both heated air and water.
Solar Panels
Prep for Solar Panels 22OPTOPTOPTIncludes docking ports for aftermarket solar panels.
(1) 200-Watt Solar Panel with (1) 30-Amp ControllerOPTOPTOPT
(3) 200-Watt Solar Panels with (1) 30-Amp ControllerOPTOPTOPT
Electrical Add On Options
In-motion Satellite Dish 23OPTOPTOPTHigh-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network®. In-motion satellite dish and prewiring for Winegard® Trav’ler™ satellite cannot be optioned together on the 33 AA.
Prewiring for Winegard® Trav’ler™ Satellite 24OPTOPTOPTIn-motion satellite dish and prewiring for Winegard® Trav’ler™ satellite cannot be optioned together on the 33 AA.
Wi-Fi BoosterOPTOPTOPT
Plumbing
Plumbing Features
Aqua View Showermiser™STDSTDSTD
Water FilterSTDSTDSTD
Water Pump Switch Access from Spyder System and Sewer Bay BoardSTDSTDSTD
Low-point Water Drain LinesSTDSTDSTD
Black Holding Tank Flush SystemSTDSTDSTD
Gravity Water FillSTDSTDSTD
Heated Fresh and Holding Tank Compartment via Heat DuctSTDSTDSTD
Tank Level Monitor SystemSTDSTDSTD
Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation PortsSTDSTDSTD
Exterior Rinse Hose with Shower HeadSTDSTDSTD
Sewer Bay Hand Sanitizer and Paper Towel HoldersSTDSTDSTD
Water Heater
Truma AquaGo™ Comfort Instant Water Heater 25DEPDEPDEPNow controllable through the Truma control panel and the Spyder System control panels. Standard with LP coach option.
Aqua-Hot® 250D Heat Exchanger 26DEPDEPDEPReplaces Truma AquaGo™ Comfort instant water heater when hydronic heating & electronic appliance equipped coach option is selected. Aqua-Hot® heat exchanger provides both heated air and water.
Water Heater Bypass System 27DEPDEPDEPStandard with LP coach option. Not necessary with hydronic heating & electronic appliance equipped coach option.
Exterior
Exterior Features
Full-body Paint with (3) Layers of Clear CoatSTDSTDSTD
Single-colored Slide-out EndwallsSTDSTDSTD
High Performance Protective Film on Front Cap and Select AreasSTDSTDSTD
(1) Girard® Side-mounted Powered Patio Awning with Integrated LED LightingSTDSTDSTD
Girard® Powered Door Awning with Integrated LED LightingSTDSTDSTD
Girard® Slide-out ToppersSTDSTDSTD
Side-swinging Exterior Storage Doors with Gas ShocksSTDSTDSTD
Lockable Handles on Compartment DoorsSTDSTDSTD
Motion-sensor Lights in Cargo BaySTDSTDSTD
120-Volt and 12-Volt Outlets Inside Cargo BaysSTDSTDSTD
Pass-through Basement StorageSTDSTDSTD
Charcoal Carpet Cargo WallsSTDSTDSTD
Fiberglass Reinforced Plastic Basement FloorSTDSTDSTD
Frameless, Single-Pane WindowsSTDSTDSTD
Exterior Patio LightSTDSTDSTD
Daytime Running LightsSTDSTDSTD
Docking LightsSTDSTDSTD
Chrome Power Heated Side-View Mirrors with Integrated CamerasSTDSTDSTD
Exterior TV with SoundbarSTDSTDSTD
Fast Charge USB ports within Exterior TV CompartmentSTDSTDSTD
Lightweight Entry Door with Integrated ScreenSTDSTDSTD
Entry Door Grab HandleSTDSTDSTD
Deadbolt Front Entrance LockSTDSTDSTD
Automatic Double Entry StepSTDSTDSTD
Front Door Entry System via Key Fob 28STDSTDSTDEntry system does not include exterior Spyder keypad.
Mud FlapsSTDSTDSTD
Custom Rock GuardSTDSTDSTD
Exterior Paint Color Options
NasaOPTOPTOPT
Euro BlueOPTOPTOPT
Fire OpalOPTOPTOPT
Rustic CanyonOPTOPTOPT
Frosted GraniteOPTOPTOPT
Exterior Add On Options
(1) Manual Storage Compartment Slide-out Tray 29OPTOPTOPTTrays slide out on both sides of motorhome.
Lippert™ On-The-Go™ Telescoping Ladder 30OPTOPTOPTAll units will ship with a Lippert™ On-The-Go™ Prepped Receiver installed.
Interior
Interior Features
Handcrafted Overhead Cabinetry 31STDSTDSTD(blank)
Carpeted Step Well with Composite StepsSTDSTDSTD
Powered Step Well CoverSTDSTDSTD
Living Area TVSTDSTDSTD
Solid Surface Galley CountertopSTDSTDSTD
Treated Carpet in Slide-out FloorsSTDSTDSTD
Handcrafted Slide-out FasciaSTDSTDSTD
Soft Touch Vinyl CeilingSTDSTDSTD
Dimmable LED LightingSTDSTDSTD
Prep for Washer and DryerSTDSTDSTD
Carbon Monoxide DetectorSTDSTDSTD
LPG Leak DetectorSTDSTDSTD
Smoke DetectorSTDSTDSTD
Fire ExtinguisherSTDSTDSTD
Solar and Privacy ShadesSTDSTDSTD
Soft-closing DrawersSTDSTDSTD
Powered Roof VentsSTDSTDSTD
Interior Grab Handle at Entry DoorSTDSTDSTD
Egress Windows Throughout CoachSTDSTDSTD
Interior Décor Packages
Stoney CreekOPTOPTOPT
SolsticeOPTOPTOPT
Upholstery Fabrics
Ultrafabrics® Montage Landscape 32DEPDEPDEPAlways paired with Stoney Creek Fabric Suite.
Ultrafabrics® Montage Alpaca 33DEPDEPDEPAlways paired with Solstice Fabric Suite.
Cabinetry Color
ShadowOPTOPTOPT
SandstoneOPTOPTOPT
White LinenOPTOPTOPT
PlatinumOPTOPTOPT
Floor Tiles
Contessa Oro Glazed Porcelain TileSTDSTDSTD
Interior Add On Options
Standalone Living Area FireplaceOPT-OPT
Stacked Washer and DryerOPTOPTOPT
Gold Heat® Dual Zones Heated Tile FloorOPTOPTOPT
Central Vacuum SystemOPTOPTOPT
Driver's Compartment
Driver's Compartment Features
Ultrafabrics® Montage Power Driver and Passenger SeatsSTDSTDSTD
Dual Driver And Passenger Seat ArmrestsSTDSTDSTD
Swivel Bases for Driver and Passenger SeatsSTDSTDSTD
Adjustable Seatbelt BracketsSTDSTDSTD
Powered Passenger Seat FootrestSTDSTDSTD
Tilt and Telescoping Steering Wheel with Integrated ControlsSTDSTDSTD
Adjustable Accelerator and Brake PedalsSTDSTDSTD
Wraparound Dash with Matte Gray AccentsSTDSTDSTD
Mounted Dash FansSTDSTDSTD
Cupholders on Driver and Passenger SideSTDSTDSTD
Digital Dash ClusterSTDSTDSTD
(1) Center Storage DrawerSTDSTDSTD
Generator Start & Stop Rocker SwitchSTDSTDSTD
USB Dash ReceptaclesSTDSTDSTD
12-Volt Dash ReceptacleSTDSTDSTD
Backlit Dash Rocker SwitchesSTDSTDSTD
Passenger Console Controls for Map Light, Fan, and Step Well CoverSTDSTDSTD
Driver and Passenger Map LightsSTDSTDSTD
One-piece Panoramic WindshieldSTDSTDSTD
Single-motor Intermittent Windshield WipersSTDSTDSTD
Automatic LED HeadlightsSTDSTDSTD
Side-view Cameras 34STDSTDSTDIntegrated within side-view mirrors and activated by turn signals.
Color Back-up CameraSTDSTDSTD
7" High Definition LED Multichannel Monitor for Side-view and Back-up CamerasSTDSTDSTD
Stereo with AM & FM Radio, CD Player, and Satellite Radio 35STDSTDSTDSubscription required for satellite radio.
Ceiling Mounted SpeakersSTDSTDSTD
Overhead Cabinetry with Wooden Panel DoorsSTDSTDSTD
Auxiliary Start SwitchSTDSTDSTD
Concealed Air HornSTDSTDSTD
Manual Opening Driver Side WindowSTDSTDSTD
Solid, Non-opening Passenger Side WindowSTDSTDSTD
Powered Solar and Privacy Windshield ShadeSTDSTDSTD
Manual Solar and Privacy Shades on Side WindowsSTDSTDSTD
Driver's Compartment Options
In-dash Navigation SystemOPTOPTOPT
Front Overhead TVOPTOPTOPT
Electric Front Overhead Drop-Down Bunk 36OPTOPTOPTMattress measures 72" x 30". Decreases overhead storage capacity. Maximum weight limit of drop-down bunk is 250 pounds. Now includes telescoping ladder.
Dinette and Living Area
Driver Side Dinette
75" Booth Dinette-Sleeper 37-STD-Piece of furniture converts to 72" x 45" sleeping area.
75" Dinette with Chairs 38-OPT-Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs.
75" U-shaped Dinette-OPT-
72" Booth Dinette-Sleeper 39--STDPiece of furniture converts to 69" x 45" sleeping area.
72" Dinette with Chairs 40--OPTFormerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs.
72" U-shaped Dinette--OPT
Driver Side Furniture
85" Air Coil Sofa Bed with Recliner 41STD--Mattress measures 72" x 59" and includes internal pump.
114" Super Sofa 42OPT--Consists of a flip and fold sofa bed, a 37" single theater seat, and a center console. Flip and fold sofa bed converts to 70" x 59" sleeping area.
74" Air Coil Sofa Bed 43-STD-Mattress measures 72" x 52" and includes internal pump.
74" Theater Seating-OPT-
85" Air Coil Sofa Bed 44--STDMattress measures 72" x 59" and includes internal pump.
83" Theater Seating--OPT
Passenger Side Dinette
72" Booth Dinette-Sleeper 45STD--Piece of furniture converts to 69" x 45" sleeping area.
72" Dinette Bar with Lift TV 46OPT--Includes (2) freestanding accent chairs and (2) wooden folding chairs. Lift TV deletes cabinetry over dinette.
72" Dinette with Chairs 47OPT--Formerly known as "Dinette Computer Workstation". The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. Includes (2) freestanding accent chairs and (2) wooden folding chairs.
72" U-shaped DinetteOPT--
Passenger Side Furniture
64" DE Sofa Bed with Lift TV 48-STD-Piece of furniture converts to 57" x 49" sleeping area. Lift TV deletes cabinetry over furniture.
Recliner and Lift TV 49-OPT-Lift TV deletes cabinetry over furniture.
Recliner and Lift TV with Fireplace 50-OPT-Lift TV deletes cabinetry over furniture.
Passenger Side Bunk Beds (28" x 70") 51--STDNow includes tablet holders in bunk areas.
Kitchen
Kitchen Features
1.7-Cubic Foot Smart Convection Microwave with Air FrySTDSTDSTD
Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down SprayerSTDSTDSTD
Galley Overhead CabinetsSTDSTDSTD
Panoramic Galley WindowSTDSTDSTD
Task LightingSTDSTDSTD
Full Tile BacksplashSTDSTDSTD
Solid Surface Galley Countertop, Sink, and Cooktop CoverSTDSTDSTD
Refrigerator
20-Cubic Foot Stainless Steel Residential Refrigerator with Top Freezer 52STDSTD-Refrigerator volume is approximated.
23-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer 53--STDRefrigerator volume is approximated.
Cooking Appliances
Three-Burner Liquid Propane Cooktop 54DEP(STD)DEP(STD)DEP(STD)Standard with LP coach option. Not available with hydronic heating & electronic appliance equipped coach option.
Oven Range with Liquid Propane Cooktop 55DEP(OPT)DEP(OPT)DEP(OPT)Option with LP coach option. Replaces three-burner liquid propane cooktop when selected. Not available with hydronic heating & electronic appliance equipped coach option. Cannot option dishwasher and oven with cooktop together.
Two-Burner Induction Cooktop 56DEPDEPDEPReplaces three-burner liquid propane cooktop when hydronic heating & electronic appliance equipped coach option is selected.
Drawer-style Dishwasher 57OPTOPTOPTCannot option dishwasher and oven with cooktop together.
Extendable Countertops
Flip and Fold Countertop ExtensionSTD--
Manual Release Expand-An-Island-STDSTD
Bedroom
Bedroom Features
Under Bed StorageSTDSTDSTD
Bedside WindowsSTDSTDSTD
Overhead Cabinets with HeadboardSTDSTDSTD
Bed Comforter with Throw PillowsSTDSTDSTD
Handcrafted Privacy DoorSTDSTDSTD
LED Reading LightsSTDSTDSTD
Nightstand with Solid Surface TopsSTDSTDSTD
Mounted Bedroom TVSTDSTDSTD
Centralized Entertainment Center 58STDSTDSTDHouses Blu-ray™ player, satellite receiver, and cable TV hook-up.
Ceiling FanSTDSTDSTD
Laundry HamperSTDSTDSTD
Mattress
Memory Foam King Mattress (72" x 80")STDSTDSTD
Memory Foam Queen Mattress (60" x 80")-OPTOPT
Bedroom Storage
Floor-to-ceiling Closet SpaceSTD--
Wardrobe with Drawers Underneath-STDSTD
Bedroom Add On Options
Bedroom Egress DoorOPTOPTOPT
Bathroom
Bathroom Features
(1) Porcelain Master Bathroom SinkSTDSTDSTD
Solid Surface Lavatory TopSTDSTDSTD
Handheld Shower Head with Slide BarSTDSTDSTD
Shower SkylightSTDSTDSTD
Shower LED Light with Sliding CoverSTDSTDSTD
Towel and Toilet Paper HoldersSTDSTDSTD
Mirrored Medicine CabinetSTDSTDSTD
Roof Vent FanSTDSTDSTD
Base CabinetSTDSTDSTD
Number of Bathrooms
(1) BathroomSTD--
(1) Bathroom and (1) Half-bath 59-STDSTDAll half-baths contain a toilet and a solid surface countertop with a single porcelain sink.
Shower
One-Piece Molded Fiberglass Shower (34.5" x 34.5")STD--
One-Piece Molded Fiberglass Shower (28.5" x 40.5")-STDSTD
Toilet
(1) Gravity Flush ToiletSTD--
(1) Gravity Flush Toilet and (1) Macerator Toilet-STDSTD
