Cahaba Specifications

Close Specs

Cahaba

Select multiple floor plans to compare.

19 SCCahaba Footnotes
Weights and Measures
Dimensions
Overall Length (approx.)19' 5"
Overall Width95.5"
Overall Height9' 10"
Interior Height75"
Interior Width69"
Weight Limits
GVWR (pounds)9050
Hitch Rating (pounds)5000
GCWR (pounds)13930
Capacities
Fuel Tank (gallons)24.5
DEF Tank (gallons)4.8
Fresh Water (gallons)28
Combined Black-Gray Tank (gallons)27
Chassis and Drivetrain
Chassis and Drivetrain Features

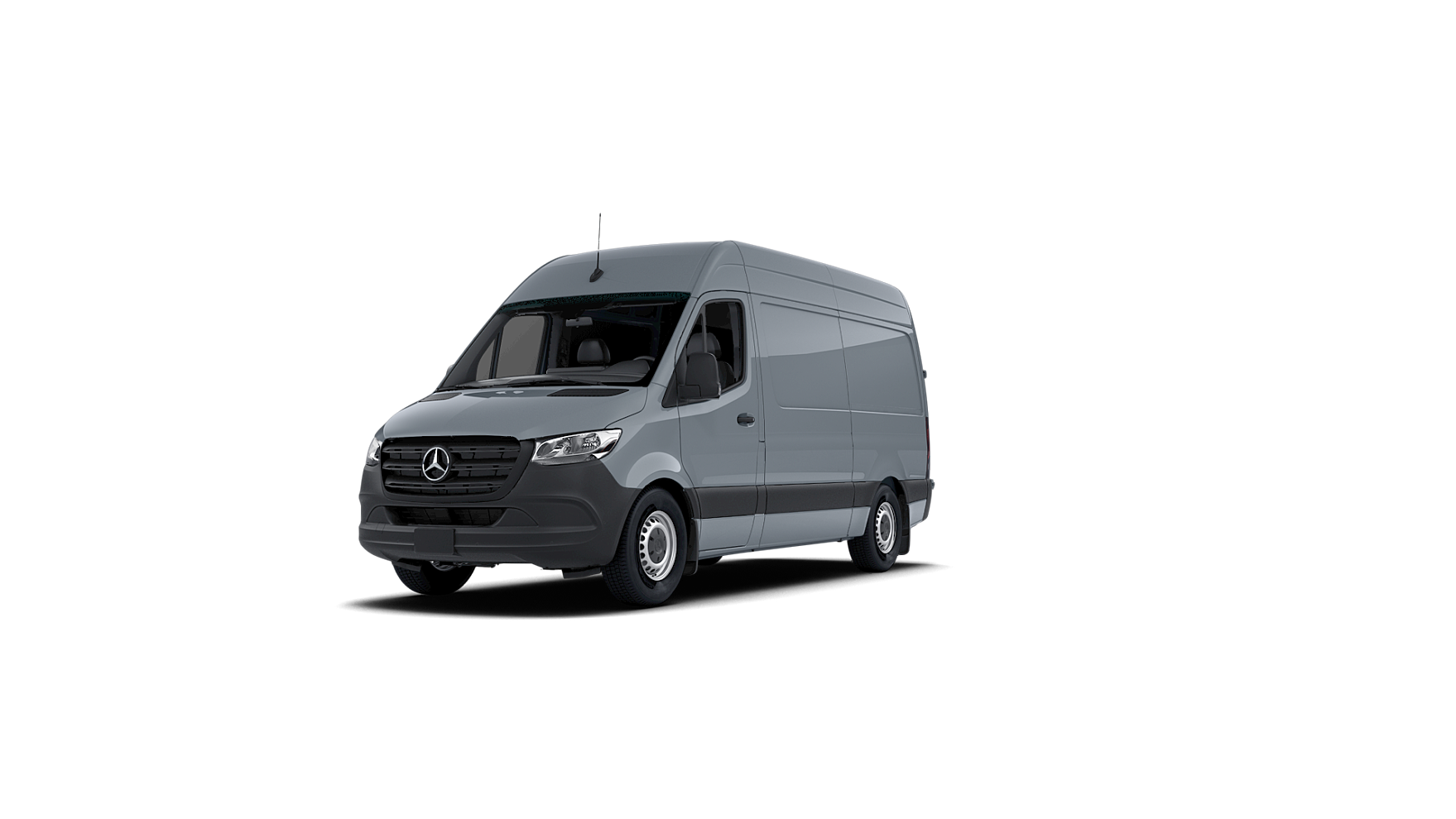

Mercedes-Benz® 2500 Sprinter Cargo Van ChassisSTD
Mercedes-Benz® 3.0-Liter V6 Turbo 188 HP Diesel Engine with 325 lb-ft Torque 1STDPeak horsepower achieved at 3,800 RPM. Peak torque achieved at 2,400 RPM.
220-Amp AlternatorSTD
Mercedes-Benz® 7G-Tronic Automatic TransmissionSTD
Vision® Off-road WheelsSTD
(1) 12-Volt AGM Chassis BatterySTD
SumoSprings® Ride Assist SystemSTD
Front RadiatorSTD
Four Wheel ABS BrakesSTD
Manual Parking BrakeSTD
Active Brake Assist (Collision Mitigation)STD
Active Distance Assist Distronic® (Adaptive Cruise Control)STD
Hill Start AssistSTD
Attention AssistSTD
Traffic Sign AssistSTD
Load Adaptive Electronic Stability Program (ESP)STD
High Beam AssistSTD
Active Lane Keeping AssistSTD
Tire Pressure MonitoringSTD
Drivetrain Options
Two-wheel DriveSTD
Four-wheel DriveOPT
Tire Options
Front and Rear LT 245/75R 16 All-Season TiresSTD
Front and Rear LT 245/70R 17 BF Goodrich®All-Terrain T/A® KO2 Tires (Plus Spare)OPT
Volta Power System Option Features
Secondary 120-Amp Alternator 2OPTOnly available with Volta Power System option.
Electrical
Electrical Features
All-Electric CoachSTD
Spyder Controls Multiplex System Featuring App CompatibilitySTD
(1) 12-Volt Lithium House BatterySTD
Wall-mounted Thermostat with Built-in Temperature SensorSTD
(1) 13,500-BTU Air Conditioner with Soft-start and Bluetooth CapabilitySTD
Elwell Timberline Hydronic Heating SystemSTD
SmartPlug® Detachable 30-Amp Shore Power CordSTD
HD Over-the-air AntennaSTD
Park Cable and Ground Satellite Hook-upSTD
Mercedes-Benz® Wireless Internet AccessSTD
12-Volt Breaker PanelSTD
12-Volt Disconnect SwitchSTD
Strategically Placed 110-Volt OutletsSTD
110-Volt Exterior ReceptacleSTD
USB Receptacles Throughout CoachSTD
Electrical Add-on Options
Power Without Compromise® Volta Power System with 12.1-Kilowatt Hour Usable Energy 3OPTIncludes additional batteries for more usable energy. Upgrades inverter wattage to 3,200-watts and adds a second, dedicated alternator. Includes centralized Volta System monitor and energy management system.
Standard Power System Features
2,000-Watt Pure Sine Wave Inverter/Charger 4OPTNot available with Volta Power System option.
(2) Solar Panels 5OPTNot available with Volta Power System option.
Volta Power System Option Features
3,200-Watt Pure Sine Wave Inverter/Charger 6OPTOnly available with Volta Power System option.
Energy Management System 7OPTOnly available with Volta Power System option.
(3) Solar Panels 8OPTOnly available with Volta Power System option.
Plumbing
Plumbing Features
Elwell Timberline Hydronic Heating SystemSTD
Water Heater Bypass SystemSTD
Aqua View Showermiser™STD
Water FilterSTD
Water PumpSTD
Low-point Water Drain LinesSTD
Black Holding Tank Flush SystemSTD
Tank Level Monitor SystemSTD
Fresh Water Hookup for City Water and Tank FillSTD
Sewer Hose StorageSTD
Exterior
Exterior Features
(1) Girard® Side-mounted Powered Patio Awning with Integrated LED LightingSTD
Flush-Style Tinted Windows with Tip-out FeatureSTD
Running Board with 12-Volt LightingSTD
Exterior Patio LightSTD
Fog LightsSTD
Heated, Electrically Adjustable Side-view MirrorsSTD
Rear Mud GuardsSTD
Exterior Color Package Options
SeleniteOPT
SilverOPT
Tenorite GrayOPT
WhiteOPT
Exterior Add-on Options
Luggage Rack with Side-mounted LadderOPT
Rear-door Mounted MOLLE Gear RackOPT
Rear-door Mounted Tire Carrier with Full-size TireOPT
Exterior LED Light Package 9OPTIncludes LED front light bar and rear spotlight.
Screen Door Package 10OPTIncludes screens for rear door and passenger side sliding door.
Interior
Interior Features
Opposing Benches that Convert to Large BedSTD
Handcrafted Laminated CabinetrySTD
Solid Surface Galley CountertopSTD
LED LightingSTD
Centralized Location for Spyder System, Volta, and Timberline Control PanelsSTD
Carbon Monoxide DetectorSTD
LPG Leak DetectorSTD
Smoke DetectorSTD
Fire ExtinguisherSTD
Privacy ShadesSTD
Powered Roof VentsSTD
Treated Fabric Suite Options
GraphiteOPT
PebbleOPT
Cabinetry Stain Options
Linen 11OPTMust be paired with Pebble Fabric Suite.
Shadow 12OPTMust be paired with Graphite Fabric Suite.
Driver's Compartment
Driver's Compartment Features
Adjustable Driver and Passenger SeatsSTD
Swivel Bases for Driver and Passenger SeatsSTD
Heated Driver and Passenger SeatsSTD
Leather Wrapped Steering Wheel with Integrated ControlsSTD
Keyless StartSTD
Instrument Cluster with Color DisplaySTD
Tray for Smartphones with Charging PortsSTD
Rain Sensor for Windshield WipersSTD
Automatic LED HeadlightsSTD
Interior Rear-view MirrorSTD
Driver and Passenger Air BagsSTD
Crosswind AssistSTD
Blind Spot Monitoring SystemSTD
Emergency Call SystemSTD
Smartphone Integration For Apple Carplay® and Android™ AutoSTD
Mercedes-Benz® MBUX Multimedia System with 10.25” TouchscreenSTD
Parking Package with 360˚ View CameraSTD
Intelligent NavigationSTD
Powered WindowsSTD
Door-mounted Driver and Passenger Assist HandlesSTD
Powered Door LocksSTD
Vinyl Floor CoveringSTD
Privacy CurtainSTD
Kitchen
Kitchen Features
12-Volt, 2.3-Cubic Foot Stainless Steel Refrigerator with FreezerSTD
Stainless Steel Convection Microwave with Exterior Venting STD
Portable Single-burner Induction CooktopSTD
Stainless Steel Single Bowl Sink and Faucet with Built-in SprayerSTD
Galley Overhead CabinetsSTD
Solid Surface Galley CountertopSTD
Bathroom
Bathroom Features
24" x 36" Shower Surround with Toilet PlatformSTD
Retractable Shower ScreenSTD
Shower SkylightSTD
Dry-roll Toilet Paper DispenserSTD
Roof Vent FanSTD
Base CabinetSTD
