Allegro RED 340 Specifications
Close Specs

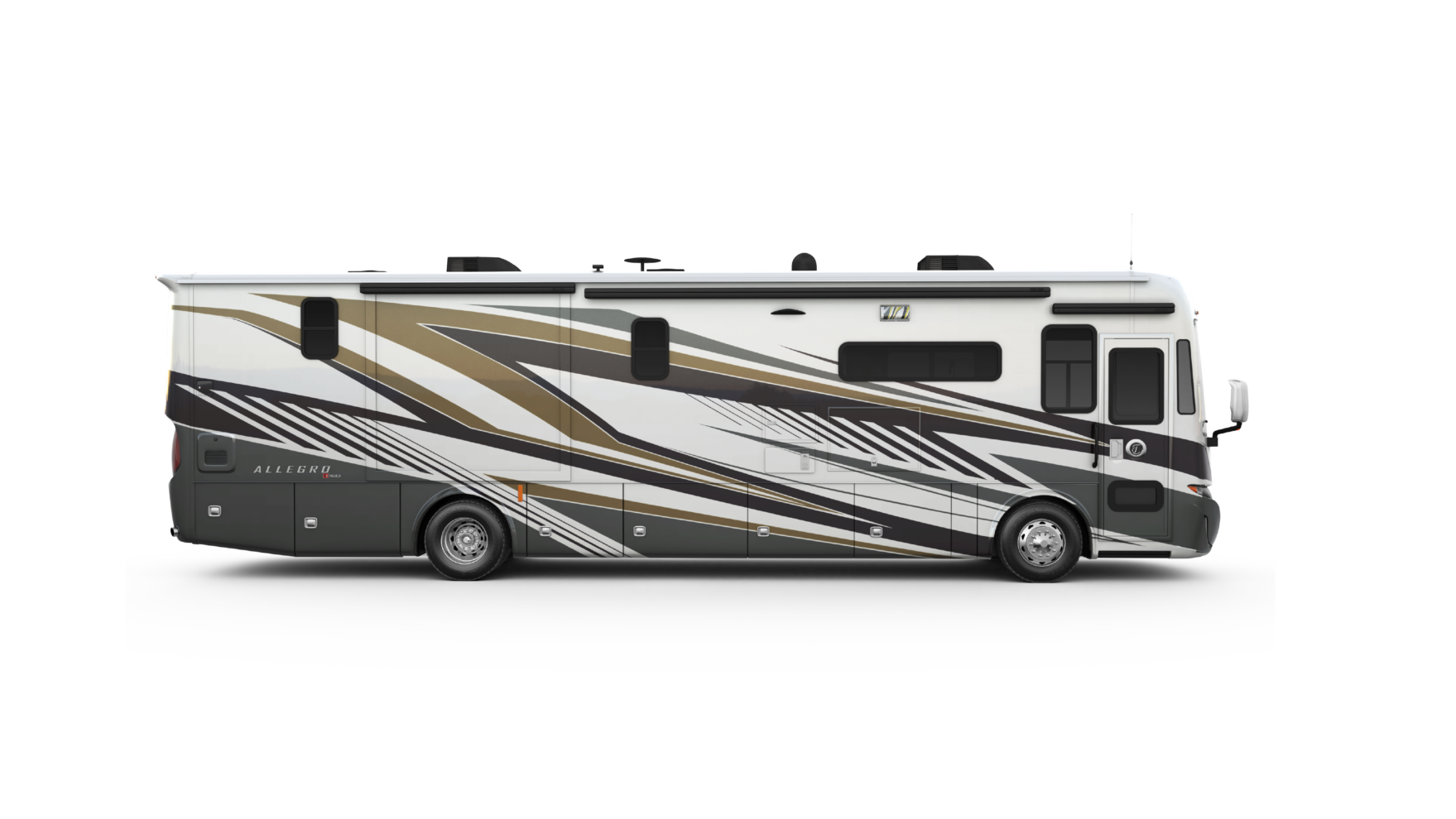

Allegro RED 340
Select multiple floor plans to compare.
| 33 AL | 38 LL | Red 340 Footnotes | ||
| Weights and Measures | ||||
| Dimensions | ||||
| Overall Length (approx.) 1 | 35'2" | 39'6" | The approximated coach width and length does not include side-view mirrors and rear ladders. | |
| Overall Width 2 | 101" | 101" | The approximated coach width and length does not include side-view mirrors and rear ladders. | |
| Overall Height | 12'10" | 12'10" | ||
| Minimum Garage Height | 14' | 14' | ||
| Interior Height | 84" | 84" | ||
| Interior Width | 96" | 96" | ||
| Square Footage (approx.) 3 | 330 | 350 | Square footage was calculated with the slide-outs fully extended. | |
| Basement Storage (cubic feet, approx.) | 71 | 118 | ||
| Wheel Base | 198" | 252" | ||
| Weight Limits | ||||
| GAWR-Front (pounds) | 10000 | 10410 | ||
| GAWR-Rear (pounds) | 18000 | 17590 | ||
| GVWR (pounds) | 28000 | 28000 | ||
| Maximum Trailer Weight (pounds) 4 | 5000 | 5000 | Maximum Trailer Weight is dependent on the loading and towing variables which include the GVWR, GAWR, and GCWR, as well as adequate trailer brakes. | |
| Hitch Rating (pounds) | 5000 | 5000 | ||
| GCWR (pounds) | 33000 | 33000 | ||
| Capacities | ||||
| Fuel Tank (gallons) | 90 | 90 | ||
| DEF Tank (gallons) 5 | 13 | 13 | Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards. | |
| Fresh Water (gallons) | 70 | 70 | ||
| Grey Water (gallons) | 50 | 65 | ||
| Black Water (gallons) | 50 | 65 | ||
| LPG Tank (gallons) 6 | 24 | 24 | LPG tank can only be filled to 80% capacity. | |
| Chassis and Drivetrain | ||||
| Chassis and Drivetrain Features | ||||
| Freightliner® XCS Straight Rail Rear Engine Diesel Chassis with RoadWatch | STD | STD | ||
| Two-wheel Drive | STD | STD | ||
| Cummins® B6.7 340 HP Diesel Engine with 700 lb-ft Torque 7 | STD | STD | Peak horsepower achieved at 2,600 RPM. Peak torque achieved at 1,600 RPM. | |
| 160-Amp Alternator | STD | STD | ||
| Allison® 2500 MH 6-speed Automatic Transmission with Lock-up Torque Converter | STD | STD | ||
| Aluminum Wheels | STD | STD | ||
| Front and Rear 255/80R 22.5 Tires | STD | STD | ||
| (2) 12-Volt Flooded Lead-Acid Chassis Batteries | STD | STD | ||
| Valid Air Leveling System | STD | STD | ||
| Neway® Air Ride Front Suspension | STD | STD | ||
| Freightliner® V-Series V-Ride Rear Suspension | STD | STD | ||
| Custom Tuned Sachs® Shock Absorbers | STD | STD | ||
| Rear Radiator | STD | STD | ||
| Front Disc Brakes and Rear Drum Brakes | STD | STD | ||
| Full Air Brake System with Automatic Slack Adjusters | STD | STD | ||
| Single Stage Variable Geometry Turbocharger (VGT) Engine Brake | STD | STD | ||
| Manual Parking Brake | STD | STD | ||
| Tire Pressure Monitoring | STD | STD | ||
| Adaptive Cruise Control | STD | STD | ||
| Automatic Traction Control | STD | STD | ||
| Collision Mitigation with Forward Warning and Active Braking | STD | STD | ||
| Electronic Stability Control | STD | STD | ||
| Construction | ||||
| Construction Features | ||||
| Seamless One-piece Gel-coat Fiberglass Molded Roof Cap | STD | STD | ||
| 5 1/4" Formed Roof Insulation | STD | STD | ||
| Tubular Aluminum Roof Skeleton Frames | STD | STD | ||
| One-piece Molded Gel-coat Fiberglass Front and Rear Caps | STD | STD | ||
| Steel Cockpit Overhead Support Frame | STD | STD | ||
| Gel-coat Fiberglass Outside Wall Panel | STD | STD | ||
| Tubular Aluminum Wall Skeleton Frames | STD | STD | ||
| High-performance Thermal Insulation in Sidewalls | STD | STD | ||
| Steel Floor Skeleton | STD | STD | ||
| Engineered Wood Sub-flooring | STD | STD | ||
| 1 1/2" Thick Thermal Insulation in Floor | STD | STD | ||
| Steel Basement Construction | STD | STD | ||
| Rust Protective Undercoating | STD | STD | ||
| Electrical | ||||
| Electrical Features | ||||
| Liquid Propane (LP) Coach 8 | STD | STD | Propane is used to power the ducted furnaces, the water heater, and the liquid propane cooktop. | |
| Spyder Controls Multiplex System Featuring App Compatibility | STD | STD | ||
| 8.0-Kilowatt Onan® Quiet Diesel Generator | STD | STD | ||
| Generator Slide Tray | STD | STD | ||
| 2,000-Watt Pure Sine Wave Inverter with Auto-Gen Start and Interior Remote Control 9 | STD | STD | Automatic generator start capabilities controlled through Spyder Controls Multiplex System. | |
| (4) 6-Volt Flooded Lead-Acid House Batteries | STD | STD | ||
| Battery Slide-out Tray | STD | STD | ||
| Wall-mounted Thermostat with Built-in Temperature Sensor | STD | STD | ||
| (2) 15,000-BTU Air Conditioners with Heat Pumps | STD | STD | ||
| Quiet Air Cooling System | STD | STD | ||
| (1) 35,000-BTU and (1) 30,000-BTU Ducted Furnaces | STD | STD | ||
| 50-Amp Shore Power | STD | STD | ||
| Prep for Satellite | STD | STD | ||
| Prep for Solar Panels 10 | STD | STD | Includes docking ports for aftermarket solar panels. | |
| Auxiliary Solar Port | STD | STD | ||
| HD Over-the-air Antenna 11 | STD | STD | Requires subscription. | |
| Park Cable and Ground Satellite Hook-up | STD | STD | ||
| Blu-ray Player | STD | STD | ||
| Satellite Receiver | STD | STD | ||
| 12-Volt Breaker Panel | STD | STD | ||
| 12-Volt Disconnect Switch | STD | STD | ||
| Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter | STD | STD | ||
| Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay | STD | STD | ||
| 110-Volt Exterior Receptacle | STD | STD | ||
| Surge Guard® Transfer Switch | STD | STD | ||
| USB Receptacles Throughout Coach | STD | STD | ||
| Electrical Add-on Options | ||||
| In-motion Satellite Dish 12 | OPT | OPT | High-definition programming is not available on a domed satellite antenna unless you subscribe to DISH Network®. | |
| Wi-Fi Booster | OPT | OPT | ||
| Plumbing | ||||
| Plumbing Features | ||||
| Truma AquaGo Comfort Instant Water Heater 13 | STD | STD | Now controllable through the Truma control panel and the Spyder System control panels. | |
| Water Heater Bypass System | STD | STD | ||
| Aqua View Showermiser | STD | STD | ||
| Water Filter | STD | STD | ||
| Water Pump Switch Access from Spyder System and Sewer Bay Board | STD | STD | ||
| Low-point Water Drain Lines | STD | STD | ||
| Black Holding Tank Flush System | STD | STD | ||
| Gravity Water Fill | STD | STD | ||
| Heated Water and Holding Tank Compartment | STD | STD | ||
| Tank Level Monitor System | STD | STD | ||
| Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports | STD | STD | ||
| Exterior Rinse Hose with Shower Head | STD | STD | ||
| Sewer Bay Hand Sanitizer and Paper Towel Holders | STD | STD | ||
| Exterior | ||||
| Exterior Features | ||||
| Full-body Paint with (3) Layers of Clear Coat | STD | STD | ||
| High Performance Protective Film on Front Cap and Select Areas | STD | STD | ||
| (1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting | STD | STD | ||
| Girard® Slide-out Toppers | STD | STD | ||
| Side-swinging Exterior Storage Doors with Gas Shocks | STD | STD | ||
| Lockable Handles on Compartment Doors | STD | STD | ||
| Motion-sensor Lights in Cargo Bay | STD | STD | ||
| 120-Volt and 12-Volt Outlets Inside Cargo Bays | STD | STD | ||
| Charcoal Carpet Cargo Walls | STD | STD | ||
| Framed, Single-Pane Windows | STD | STD | ||
| Exterior Patio Light | STD | STD | ||
| Daytime Running Lights | STD | STD | ||
| Docking Lights | STD | STD | ||
| Chrome Power Heated Side-View Mirrors with Integrated Cameras | STD | STD | ||
| Exterior TV with Soundbar | STD | STD | ||
| Fast Charge USB ports within Exterior TV Compartment | STD | STD | ||
| Manual Exterior TV Compartment Door | STD | STD | ||
| Entry Door Grab Handle | STD | STD | ||
| Deadbolt Front Entrance Lock | STD | STD | ||
| Automatic Double Entry Step | STD | STD | ||
| Mud Flaps | STD | STD | ||
| Concealed Air Horn | STD | STD | ||
| Single-colored Slide-out Endwalls | STD | STD | ||
| Limited Edition 50th Anniversary Decal | STD | STD | ||
| Exterior Color Package Options | ||||
| Euro Blue | OPT | OPT | ||
| Frosted Granite | OPT | OPT | ||
| Rocky Mountain Brown | OPT | OPT | ||
| Scarlet Thunder | OPT | OPT | ||
| Limited Edition 50th Anniversary | OPT | OPT | ||
| Exterior Add-on Options | ||||
| Lippert On-The-Go Telescoping Ladder 14 | OPT | OPT | All units will ship with a Lippert On-The-Go Prepped Receiver installed. | |
| Interior | ||||
| Interior Features | ||||
| Handcrafted Cabinet Fascias and Doors with Concealed Hinges | STD | STD | ||
| (2) Flat-panel Televisions 15 | STD | STD | Located in living area and bedroom. | |
| Solid Surface Galley Countertop | STD | STD | ||
| Treated Carpet in Slide-out Floors | STD | STD | ||
| Handcrafted Slide-out Fascia | STD | STD | ||
| Soft Touch Vinyl Ceiling | STD | STD | ||
| LED Lighting | STD | STD | ||
| Prep for Washer and Dryer | STD | STD | ||
| Carbon Monoxide Detector | STD | STD | ||
| LPG Leak Detector | STD | STD | ||
| Smoke Detector | STD | STD | ||
| Fire Extinguisher | STD | STD | ||
| Solar and Privacy Shades | STD | STD | ||
| Soft-closing Drawer Slides | STD | STD | ||
| Powered Roof Vents | STD | STD | ||
| Interior Grab Handle at Entry Door | STD | STD | ||
| Treated Fabric Suite Options | ||||
| Moondance 16 | OPT | OPT | Khaki Shade and Resort Tan are no longer available. | |
| Stonewashed 17 | OPT | OPT | Khaki Shade and Resort Tan are no longer available. | |
| Ultraleather Options | ||||
| Taupe Hill 18 | OPT | OPT | Belgian and Cocoon are no longer available. | |
| Trail 19 | OPT | OPT | Belgian and Cocoon are no longer available. | |
| Cabinetry Stain Options | ||||
| Natural Alder | OPT | OPT | ||
| Floor Tile Options | ||||
| Sea Grass Luxury Vinyl Tile 20 | STD | STD | Sand Castle is no longer available. | |
| Interior Add-on Options | ||||
| Stacked Washer and Dryer | OPT | OPT | ||
| Central Vacuum System | OPT | OPT | ||
| Driver's Compartment | ||||
| Driver's Compartment Features | ||||
| Ultraleather Power Driver and Passenger Seats | STD | STD | ||
| Adjustable Seatbelt Brackets | STD | STD | ||
| Passenger Seat Footrest | STD | STD | ||
| Tilt and Telescoping Steering Wheel with Integrated Controls | STD | STD | ||
| Adjustable Accelerator and Brake Pedals | STD | STD | ||
| Dual Dash Fans | STD | STD | ||
| USB Dash Receptacles | STD | STD | ||
| Storage Drawer in Dash | STD | STD | ||
| 12-Volt Dash Receptacle | STD | STD | ||
| Digital Dash Cluster | STD | STD | ||
| Backlit Dash Switches | STD | STD | ||
| Contemporary Dash | STD | STD | ||
| Cupholders on Driver and Passenger Side | STD | STD | ||
| Built-in Driver and Passenger Consoles with Rocker Switches | STD | STD | ||
| Driver and Passenger Map Lights | STD | STD | ||
| One-piece Panoramic Windshield | STD | STD | ||
| Single-motor Intermittent Windshield Wipers | STD | STD | ||
| Automatic LED Headlights | STD | STD | ||
| Ceiling Mounted Speakers | STD | STD | ||
| Stereo with AM & FM Radio, CD Player, and Satellite Radio 21 | STD | STD | Subscription required for satellite radio. | |
| Side-view Cameras 22 | STD | STD | Integrated within side-view mirrors and activated by turn signals. | |
| Color Back-up Camera with Monitor | STD | STD | ||
| In-dash Navigation System | STD | STD | ||
| Driver's Compartment Overhead Cabinets with Wooden Panel Doors | STD | STD | ||
| Auxiliary Start Switch | STD | STD | ||
| Manual Opening Driver Side Window | STD | STD | ||
| Solid, Non-opening Passenger Side Window | STD | STD | ||
| Powered Solar and Privacy Windshield Shade | STD | STD | ||
| Manual Solar and Privacy Shades on Side Windows | STD | STD | ||
| Carpeted Step Well with Composite Steps | STD | STD | ||
| Manual Step Well Cover | STD | STD | ||
| Driver's Compartment Add-on Options | ||||
| Front Overhead Drop-Down Bunk 23 | OPT | OPT | Drop-down bunk sleeps one comfortably and will decreases overhead storage capacity. Maximum weight limit of drop-down bunk is 250 pounds. | |
| Dinette and Living Area | ||||
| Driver Side Dinette Options | ||||
| Ultraleather Booth Dinette-Sleeper 24 | - | STD | Piece of furniture sleeps one comfortably. Now with lift-up seat storage access. | |
| Overhead Dinette Cabinets | - | STD | ||
| Driver Side Furniture Options | ||||
| Ultraleather Super Sofa 25 | STD | STD | Consists of theater seating and a flip and fold sofa bed. Piece of furniture sleeps two comfortably. | |
| Mounted Flat-panel TV | STD | - | ||
| Fireplace | OPT | - | ||
| Passenger Side Dinette Options | ||||
| Ultraleather Booth Dinette-Sleeper 26 | STD | - | Piece of furniture sleeps one comfortably. Now with lift-up seat storage access. | |
| Dinette Computer Workstation 27 | OPT | - | The printer bump-out was removed for more leg room. The keyboard and printer trays have been converted to a drawer and a fixed shelf to maximize storage. | |
| Overhead Dinette Cabinets | STD | - | ||
| Passenger Side Furniture Options | ||||
| Mounted Flat-panel TV | - | STD | ||
| Fireplace | - | OPT | ||
| Kitchen | ||||
| Kitchen Features | ||||
| Stainless Steel Residential Refrigerator | STD | STD | ||
| Stainless Steel Convection Microwave with Exterior Venting | STD | STD | ||
| Large Kitchen Sink with Single Level Faucet and Pull-down Sprayer | STD | STD | ||
| Galley Overhead Cabinets | STD | STD | ||
| Panoramic Galley Window | STD | STD | ||
| LED Countertop Lighting | STD | STD | ||
| Full Tile Backsplash | STD | STD | ||
| Solid Surface Galley Countertop, Sink, and Cooktop Cover | STD | STD | ||
| Cooking Appliance Options | ||||
| Three-Burner Liquid Propane Cooktop | STD | STD | ||
| Oven Range with Liquid Propane Cooktop | OPT | OPT | ||
| Bedroom | ||||
| Bedroom Features | ||||
| Memory Foam King Mattress (72" x 80") | STD | STD | ||
| Under Bed Storage | STD | STD | ||
| Bedside Windows | STD | STD | ||
| Overhead Cabinets with Headboard | STD | STD | ||
| Bed Comforter with Throw Pillows | STD | STD | ||
| Strategically Placed, Handcrafted Privacy Door | STD | STD | ||
| LED Reading Lights | STD | STD | ||
| Nightstand with Hardwood Finished Top | STD | STD | ||
| Mounted Flat-panel TV | STD | STD | ||
| Centralized Entertainment Center 28 | STD | STD | Houses Blu-ray player, satellite receiver, and cable TV hook-up. | |
| Wardrobe with Drawers Underneath | - | STD | ||
| Floor-to-ceiling Closet Space | STD | - | ||
| Laundry Hamper | STD | - | ||
| Bathroom | ||||
| Bathroom Features | ||||
| (1) Bathroom | STD | - | ||
| (1) Bathroom and (1) Half-bath 29 | - | STD | All half-baths contain a toilet and a solid surface countertop with a single porcelain sink. | |
| (1) Porcelain Master Bathroom Sink | STD | STD | ||
| Solid Surface Lavatory Top | STD | STD | ||
| One-Piece Molded Fiberglass Shower 30 | STD | STD | Added foot ledge and removed molded-in shower seats to allow for more room. | |
| Handheld Shower Head with Slide Bar | STD | STD | ||
| Shower Skylight | STD | STD | ||
| (1) Gravity Flush Toilet | STD | - | ||
| (1) Gravity Flush Toilet and (1) Macerator Toilet | - | STD | ||
| Towel and Toilet Paper Holders | STD | STD | ||
| Mirrored Medicine Cabinet | STD | STD | ||
| Roof Vent Fan | STD | STD | ||
| Base Cabinet | STD | STD |
